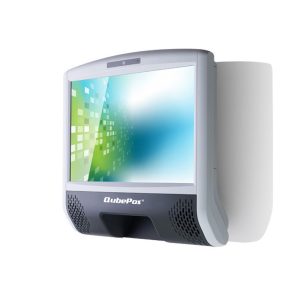

Info Kiosk SK100 LITE

The QubePos SK-100 Lite is a multifunctional kiosk scanner designed for diversified applications in self-service, ID identification, information service, multimedia service, digital signage and other interactive applications in retail, transportation, healthcare, hospitality and office building. The SK100 Lite also comes with an extensive set of web-based management tools allowing effective management.

  • 1-inch LCD with Capacitive Multitouch Screen
  • Operating System: Android 6.0
  • Image Scanner: 2D
  • Scalable Options: Power over Ethernet (PoE), Video Camera, Bluetooth Audio
  • Streaming Services: Audio, Video
  • USB Ports: Peripheral Expansion (Barcode Scanner, Smartcard Reader, Printer, Keyboard, Mouse, Flash Disk)
SKU: 204204-1 Category: Tag:
System Architecture Processor: ARM Dual-core / Quad-core CPU
Internal Storage: 8G eMMC Flash
Memory RAM: 1GB or 2GB LPDDR3
Operating System: Linux 3.4 or Android 6.0
Output Media Image Format: PNG, JPEG, GIF, BMP
Audio Format: WAV, WMA, MP3
Video Format: MPEG-4, H.264
Display Size: 10.1″ TFT LCD display
Brightness: 450 nits
Resolution: 1280×800 pixels
Speakers: 3Watt x 2(Stereo)
Touch Screen: Capacitive type
Network Interface Wired LAN: 10/100Mb Ethernet 802.3; Power over Ethernet 802.3af (optional)
Wireless LAN: 802.11 a/b/g/n/ac 2.4G/5G Dual Band (optional)
Encryption protocols: WPA, PSK and WPA Enterprise security
Application: Door Lock Control Application
Dual Display Multi-media Retail Solution
Specifications Resolution: 0.127mm/5mil UPC/EAN, 0.26/10mil 2D barcode
Indicators: LEDx2
VESA mounting: 75 x 75 mm
Interface: USBx3,HDMIx1,RS232x1,LANx1(for Ethernet or PoE),GPIO x 2 (2-pin signal output, 2-pin power output)
Physical & Environmental Operating temperature: 0°C to 40°C (32°F to 72°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: up to 95% RH (non-condensing)
Power Supply: DC 12V/2A 24W Power Adaptor/Power over Ethernet (PoE) IEEE 802.3af (optional)/Power over Ethernet (PoE+) IEEE 802.3at (optional)
Dimensions (WxHxL): 252 x 238.15 x 71.5 mm
Weight: Approx. 1.25 kg
Regulatory Regulatory: CE, FCC, RoHS
Accessories Accessories: Power Adapter, VESA mount bracket (75x75mm)
Data Capture Specifications Scanner technology: 2D area imager scanner for 1D/2D barcode
Resolution: 0.127mm/5mil UPC/EAN, 0.26/10mil 2D barcode
Ambient light: up to 100,000 Lux
Light source: 632±5nm Red LED
Weight 1250 g
Dimensions 252 × 252 × 239 mm
