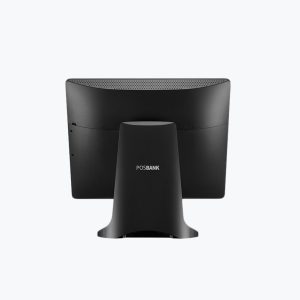

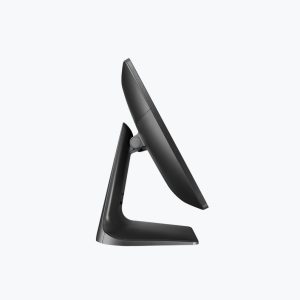

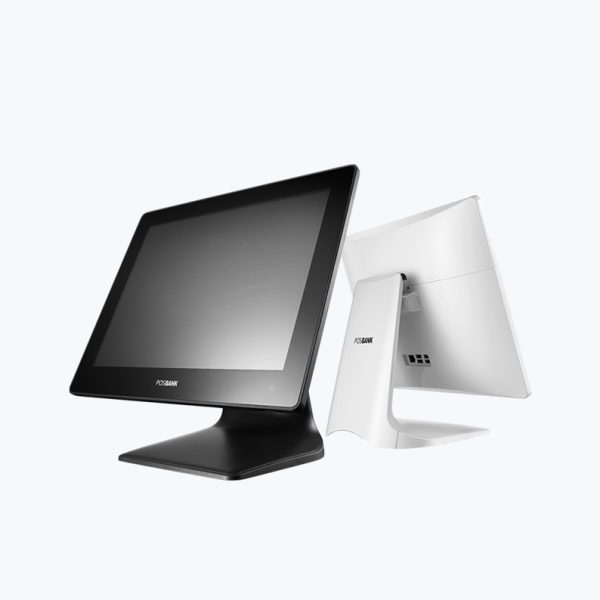

POSBANK APEXA® G

POSBANK APEXA® G

The POSBANK APEXA G POS Terminal all-in-one computer perfectly blends both modern and contemporary styling into today’s brick-and-mortar stores. Its compact and small footprint design makes efficient use of counter space, wall and VESA pole. This sleek, compact and powerful computer is ideal for both retail and restaurant.

Low Power High-Performance
Touchscreen Display with 15″ TFT LED Backlight
Resolution:1024 x 768
Windows 10 IoT Operating System
Solid State Hard Drive (SSD) for Faster Start Up and Operation
Built-in Magnetic Stripe Card Reader

System	Processors: Intel® Celeron® j1900/j3455 (2M Cache, 2.0/2.42 GHz(Burst ), 4 Cores), Fanless
	Chipset: Intel® Bay Trail
	Memory: 4GB Standard , DDR3L 1600 MT/s, Socket 1x SODIMM
	Storage: SATA 2 (3Gb/s) 2.5 inch SSO 54GB, Support AHCI
	Operating Systems: Windows 7, Windows 8.1, Windows 10 loT Enterprise, POS Ready 7
	Audio: Realtek ALC652-VD
Display	Type: 15″ TFT LCD. LED Backlight
	Resolution: 1024×758
	Brightness: 300 cd/ m² (typ.)
	Touchscreen: Projective Capacitive Touch
Interface	Display: 1 x VGA (With Powe r Output)
	USB: 6 (Rear 2, Back 4, USB 2.0 x 6) 3 (Reserved for MSR, SCR, i-Button/Touch Controller/Camera). Rj-45
	Serial: 6 (COM 1 with 5V/12V Power Output on 9 Pins, BIOS) (COM2~3 RJ-45 , Full Signal) COM4 RJ-11, Only TX/RX, 12V Power Output, Reserved for CDP) (COM5 Reserved for Cash Drawer Port) (COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR)
	LAN: 1 x Gigabit Ethernet, Rj-45
	Audio: 1 x Line-out
	Power DC-IN: 1 x (4 Pin Connector)
Power	Power Supply: Adaptor 12V, SA
Physical & Environmental	Operating Temperature: 0 °C ~ 50 °C at 10% to 90% Humidity
	Storage Temperature: -20 °C ~ 80 °C at 10% to 90% Humidity
	Dimensions (W x H x D): 364 x 333 x 210 (mm), 14.3 x 13.1 x 8.2 (in)
	Packing Dimensions (W x H x D): 500 x 470 x 300 (mm), 19.6 x 18.5 x 11.8 (in)
	Net Weight: 5,300g, 11.6Ibs
	Packing Weight: 8,000g, 17.5Ibs
	Certification: CE, FCC, KC, CB, CCC
	Color: Matte Dark Grey
Options & Peripherals	2nd Displays: 9 7″, 121″,15″ LCD Display, 1024 x 768, Optional Touchscreen
	Customer Display: VFD, 20 Columns x 2 Lines
	I/O Expansion: 1 x COMS (Rj-45 8 Pins) (Factory Option) 1 x Cash Drawer Port (Factory Option)
	Storage: 2.5 inch SSD 128GB, HOD 500GB, 1TB
	Magnetic Stripe Reader: Comply with ISO 7811, Support 1& 2 & 3 Track
	Smart Card Reader: EMV Level 1, 2
	Dallas: Dallas i-button Reader
	Fingerprint: Yes
	Camera: SM USB Interface (Internal) (Factory Option)
	Wall Mount Kit: VESA-Compatible, 75 x 75 (mm), 100 x 100 (mm)
	Serial Conversion Cable: RJ-45 to D-sub 9
	Speaker: 2 x 0.8W (Stereo) (Factory Option)
