Right Power Powertank F1000E

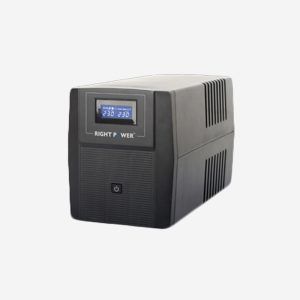

The PowerTank F Series uses a line interactive topology UPS which comes with a simulated sinewave output and an LCD panel to display information such as input voltage, output voltage, battery capacity, load level, and UPS fault.

  • User Friendly LCD Display
  • Built-in AVR for Voltage Stabilization
  • High Quality SLA Maintenance Free Battery
  • Cold Start Function
  • Off-mode Charging
  • Built-in EMI/RFI Noise Filter
  • Lightning, Spike & Surge Protection
  • Modem/Fax/Network Line Protection (RJ11/RJ45)
SKU: 210021 Category: Tag:
Input
 Input Voltage(VAC): 220V / 230V / 240V
 Range (VAC): 162 – 290VAC
 Frequency (Hz): 50Hz or 60Hz

Output
 Voltage (VAC): 220V / 230V / 240V
 Regulation (VAC): ± 10%
 Frequency (Hz): 50Hz or 60Hz +/-1%
 Waveform (Battery): Simulated Sinewave
 TRANSFER TIME (Typical): 4ms

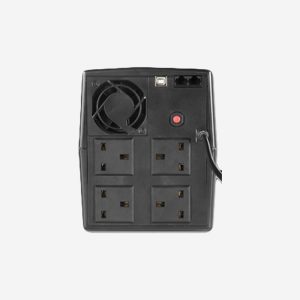

 Outlets: 4 x British Socket c/w Safety Window

Battery
 Sealed Lead Acid Maintenance Free: 12V 9AH x 1
 BACKUP TIME (Depending on load): 20 to 30 minutes

Status Indicator LCD: Input Voltage , Output Voltage, Battery Capacity, Load Level, UPS Status
  AUDIBLE ALARMS: On Battery, Low Battery, Overload, UPS Fault

Surge Protection & Filtering EMI/RFI Noise Filter: Yes
  Lighting/ Surge Protection: Yes
  Overload Protection: Breaker / Fuse


Physical
 Dimension, W x D x H (mm) : 286 x 96 x 138
 Weight (kg): 6.5

Operating Environment
 Temperature (°C): 0 to 40
 Humidity: 0 – 90% without condensation
 Noise Level @ 1 Meter (dB): Less Than 40dB

Design Standards Safety & EMC: CE and SIRIM



Weight 6500 g
Dimensions 286 × 96 × 138 mm
