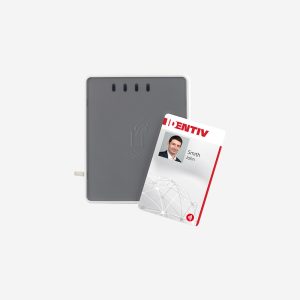

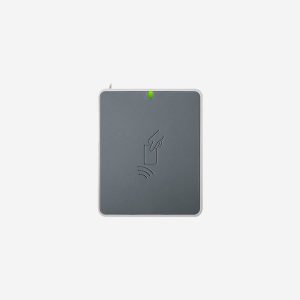

Cloud 3700F Contactless Smart Card Reader

3700 F is the ideal combination of contactless and near field communication (NFC) technologies. This PC-linked reader works in end-user environments where virtually all kinds of contactless credentials are used, even in mixed populations. With its all-in-one concept, 3700 F enables a smooth transition from well-established traditional technologies into emerging NFC applications, supporting new business. It represents the perfect mix between modern, stylish design and the same ergonomic operation of any credential form factor, like ID-1
cards, tokens, or NFC-enabled smart phones.

SKU: 209009 Category: Tag:
Supported Tag Chips: MIFARE Classic® family, MIFARE Ultralight family, MIFARE Plus family, MIFARE DESFire family, FeliCa™, Calypso, CD21, NFC Forum Tag Types 1/2/3/4
Data Transfer Rate: 106/212/424/848 kbps, depending on card IC
Antenna: Integrated
Driver and Software PC/SC Driver: PC/SC Specification Ver. 2.01.14 for: Windows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, WindowsXP, MacOS 10.9.x – 12.2.x, Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit), Android 4.0 and higher
Software: PC/SC API
Operating Conditions Power Supply: USB Bus-powered
Power Consumption: 50mA, excluding card
Dimensions: 91x75x12 mm
94 x 77 x 69 mm (with stand base)
Weight: 44 g ± 5% (0.097 lb ± 5%) / 84 g ± 5% / 104 g ± 5% (with stand base)
Operating Temperature Range: 0° to 50° C (32° to 122° F)
Storage Temperature Range: -25° to 85° C (-13° to 185° F)
Operating Humidity: Range Up to 95% RH non-condensing
Durability: Sliding contact 100,000 card insertions
MTBF: ~10M hours
Connector: 1.5m USB cable with USB type A connector
Status Indicator: Bi-Color LED
Firmware: SmartOS™
Firmware In-Field Upgradeable: Yes
Certifications / Compliance Systems/Standards: USB 2.0 Full Speed, USB-CCID, Microsoft WHQL
Regulatory/Environmental: CE, FCC, UL94, UL60950, RoHS2, REACH, WEEE
Ordering Information Product Part Number:
905502-1 (Identiv Logo)
905502-4 (w/o Logo)
905525 (optional stand kit)


Weight 44 g
Dimensions 91 × 75 × 12 mm
