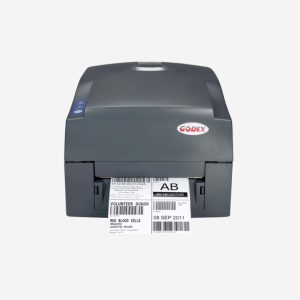

GoDEX G500 Barcode Printer

The GoDEX G500 is a cost effective, feature rich, 4” desktop label barcode printer. GoDEX unparalleled features for price ratios. The G500 has twin sensor technology, 300mtr ribbon capacity, rugged clam shell design and, uniquely for a desktop, includes Ethernet interface as standard.

  • 300 meter ribbon plus the optional label stand provides maximum printing volume.
  • “Twin-Sensor” technology allows you to use a broad range of labels.

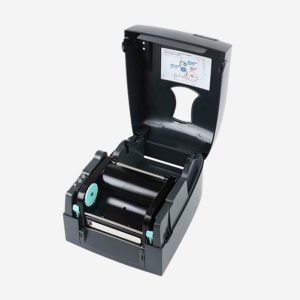

  • Easy to use, with a quick-opening design for media replenishment.
  • Strong and stable mechanism design for long term reliability.
SKU: 207009 Category: Tag:
Print MethodThermal Transfer / Direct Thermal
Resolution203 dpi (8 dots/mm)
Print Speed5IPS (127 mm/s)
Print Width4.25″ (108 mm)
Print LengthMin. 0.16” (4 mm)**; Max. 68” (1727 mm)
Processor32 Bit RISC CPU
Memory8MB Flash (4MB for user storage) / 16MB SDRAM
Sensor TypeAdjustable reflective sensor. Fixed transmissive sensor, central aligned
MediaTypes: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1” (25.4 mm) Min. – 4.64” (118 mm) Max.
Thickness: 0.0024” (0.06 mm) Min. – 0.01” (0.25 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1”, 1.5”, 3″ (25.4 mm, 38.1 mm, 76.2 mm)
RibbonTypes: Wax, wax/resin, resin
Length: 981’ (300 m)
Width: 1.18” Min – 4.33” (30 mm – 110 mm) Max
Ribbon roll diameter.: 2.67“ (68 mm)
Core diameter: 1” (25.4 mm)
Printer LanguageEZPL, GEPL, GZPL auto switch
SoftwareLabel design software: GoLabel (for EZPL only)
Driver: MAC、 Linux、Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008
DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android
Resident FontsBitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF fonts:TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Download FontsBitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts: 16×16, 24×24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts:TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Barcodes1-D Bar codes:
Code 39, Code 93, EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Postnet, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, ISBT -128, Code 32
2-D Bar codes:
PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code, Code 49, Codablock F , TLC 39
Code PagesCODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8, UTF16BE, UTF16LE
GraphicsResident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
InterfacesUSB + Parallel Port
USB + Serial Port + Ethernet
Control PanelTwo bi-color status-LEDs: Ready, Status
Control key: FEED
PowerAuto Switching 100-240VAC, 50-60Hz
EnvironmentOperation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)
HumidityOperation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.
Agency ApprovalsCE (EMC), FCC Class A, CB, CCC, cUL, KCC, BIS, EAC
DimensionLength: 11.2” (285 mm)
Height: 6.8” (171 mm)
Width: 8.9” (226 mm)
Weight5.51 lbs (2.5 Kg), excluding consumables
OptionsCutter Module
Label Dispenser
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder



Weight 2500 g
Dimensions 285 × 171 × 226 mm
