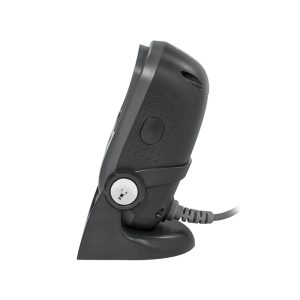

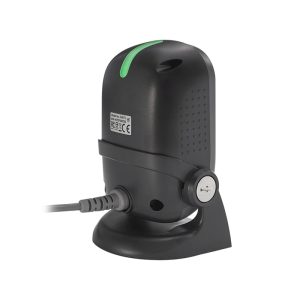

QubePos Z-8072 Ultra Scanner

The QubePos Z-8072 provides top performance and reliability with great features. This powerful and compact 2D Imager excels at reading barcodes on smartphone screens and barcodes that are poorly printed. The Z-8072 is the perfect solution for a space-constrained environment.

  • Code Printing: 1D, 2D
  • Supported Devices: Mobile Phone, Tablet, or Computer Screens
  • Additional Features: Exceptional Motion Tolerance, Full Directional Code Reading
  • Programmable Operations: Scan Mode, Beeper Tone
  • Interface Operations: RS-232, USB
SKU: 204505 Category: Tag:
Operational Aiming Element: 617 nm LED
Illumination Element: 617 nm LED
Optical System: 1280H×800V pixels (1.0M)
Scan Angle: 44.4° horizontal; 29.1° vertical
Depth of Field:
Code39 (5 mil): 0 – 50 mm
EAN13 (13 mil): 0 – 210 mm
(Note: DOF may vary depending on environment condition and barcode quality.)
Min. Bar Width: 6.8 mil (PDF 417), 5 mil (Code 39)
Print Contrast: 30% @ UPC/EAN 100%
Indicator: Color LED
Programmable Operation: Scan Mode, Beeper tone
System Interface: RS-232, USB
Physical Dimension: 145.0 × 80.2 × 97.0 mm
Weight: 250 g
Power Input Voltage: 5 VDC ±10%
Operating Current: 280 mA typical
Regulatory EMC: CE, FCC, VCCI, BSMI
Safety: IEC 62471 Exempt
Environmental Operating Temperature: 0°C – 50°C (32°F – 122°F)
Storage Temperature: -40°C – 70°C (-40°F – 158°F)
Humidity: 5% – 95% RH (non-condensing)
Drop Durability: Designed to withstand 1M drops
Decoding Ability 1D Barcode:
UPC/EAN [UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland), ISSN, Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Matrix 2 of 5, Code11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
2D Barcode:
PDF417, MicroPDF417, Composite Codes (CC-A, CC-B, CC-C) , Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro)
Weight 250 g
Dimensions 145 × 81 × 97 mm
