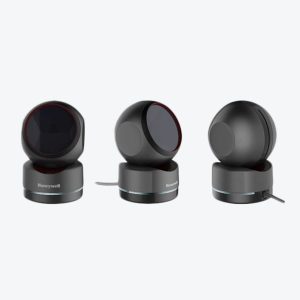

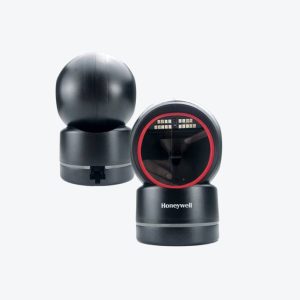

Honeywell HF680 Orbit Scanner

Honeywell HF680 is a 2D area-imaging scanner that can easily read various standards of 1D, PDF, and 2D Symbologies.

  • Modern Styling Scanner with Exceptional Performance at an Exceptional Price
  • Efficient Scanning with its Megapixel Sensor and 1Ghz Processor
  • Can Scan Barcodes On Mainstream LCD Screens And OLED Screens
  • Saves Time by Rapidly Configuring the Orbit HF680 with a Configuration Utility
  • High Compatibility with various POSs
SKU: 204009 Category: Tag:
PHYSICAL Dimensions: (L × W × H): 85 mm × 88 mm × 139 mm
  Weight: 278 +/-10g
ELECTRICAL Input voltage: 5 VDC ±0.5V
  Working: 2.0 W (400 mA @ 5V)
  Standby: 0.85 W (170 mA @ 5V)
  Host interface: USB, RS-232
ENVIRONMENTAL Operating temperature: -10°C to 40°C (14°F to 104°F)
  Storage temperature: -40°C to 60°C (-40°F to 140°F)
  Humidity: 0% to 95%RH, no condensation
  Drop: Designed to withstand 1 m drops
  Illuminance: 0-100,000 Lux
  Motion tolerance: Up to 2.5 m/s for 13 mil UPC at optimal focus
  Scan angle: Horizontal: 47°; Vertical: 30°
  Print Contrast: 20% minimum reflectance difference
  Pitch, Skew: +/-60°, +/-70°
  Decode Capability: Reads standard 1D, PDF, 2D Symbologies
  Note: Decode capabilities dependent on kit configuration.
  Warranty: 3-year factory warranty


Weight 278 g
Dimensions 85 × 88 × 139 mm
