Neuropower XR-1K

Neuropower XR-1K

XR represents ‘Xtended Runtime’ where it is best defined by its capability to function with different battery ratings to provide longer flexible backup runtime to critical applications. This was made possible with the XR’s specially designed battery charger where the charger offers a wide range of charging currents to ensure optimum battery charging for a prolonged battery lifecycle no matter what battery rating is used with the UPS.

Designed using digital microprocessors
Cold start and off charging mode
Protected by resettable circuit breakers
Auto restart function available
Easy connection between batteries and UPS via UPS battery terminal

Input		Voltage (VAC): 230
		Acceptable Voltage Range (VAC): 140 – 300
		Frequency Range (Hz): 50

Output		Nominal (VAC): 230AC Voltage Regulation (VAC) 230 ± 10%
		Regulation (VAC): 230 ± 10%
		Frequency (Hz): 50 ± 1
		Waveform (Battery): Simulated Sinewave
		Transfer Time: (ms) Typical 4 to 8

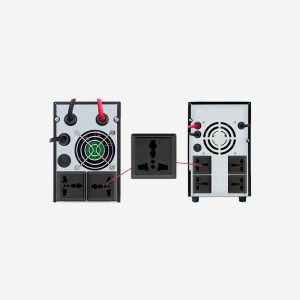

		Outlets: Sockets 4 x Universal Sockets

Battery		Battery Voltage (VDC): 24
		Floating Charging Voltage (VDC): 27.4 ± 2%
		Configurable Charging Current (A): 5 / 10 / 15 / 20

Protection		Full Protection: Overload, Discharge and Overcharge Protection

Audible Alarm		Battery Mode: Beeping every 10 sec
		Low Battery: Beeping every sec
		Overload: Beeping every 0.5 sec
		Battery Replacement Alarm: Beeping every 2 sec
		Fault: Continuous Beeping

Display		LCD: Display output and input voltage, load & battery percentage and operating mode

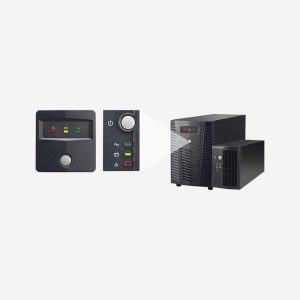

Indicators		Line Mode: Green LED
		Battery Mode: Yellow LED flashing
		Fault: Red LED

Physical		Dimension, W x D x H (mm) : 145 x 396 x 220
Physical		Weight (kg) :9.0

Operating Environment		Temperature (°C): 0 to 40
		Humidity: 0 to 90% Relative Humidity (Non-Condensing)
		Noise Level: @ 1 Meter (dB) < 40

Design Standards		Safety & EMC: CE
