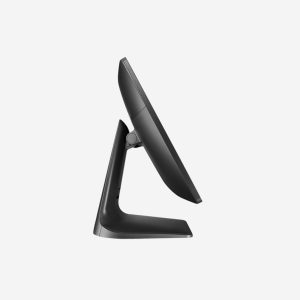

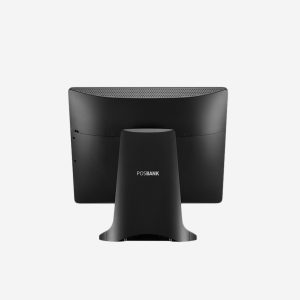

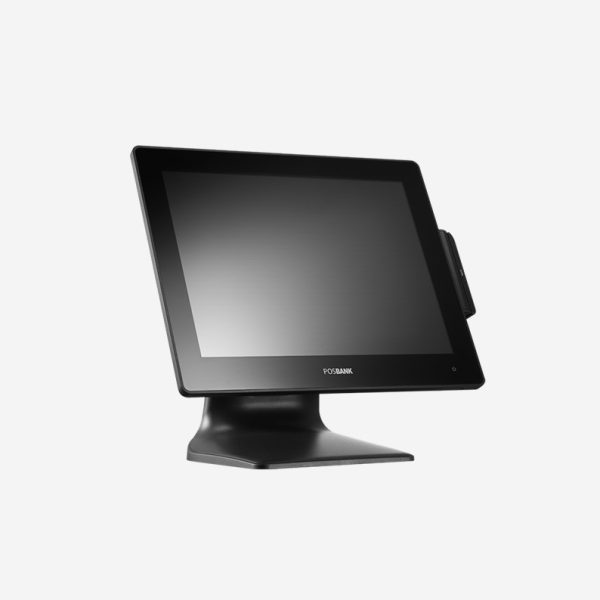

POSBANK APEXA® Prime Terminal

The POSBANK APEXA PRIME POS Terminal is the high-performance APEXA version with an Intel i5 processor (benefits of an intel i5 processor) and a highly secured operating system. This sleek, compact and powerful touch computer is ideal for hospitality or retail point of sale applications. It also has built-in workflows designed to ensure your transaction processing is efficient and accurate.

7th Generation Intel® Core™ i5 Processor
15″ Bezel-Free True-Flat and PCAP Touch display
Windows 10 IOT Operating System
Solid State Hard Drive (SSD) for Faster Start Up and Operation
Built-in Magnetic Stripe Card Reader

System	Processors: Intel® Core™ i5-7200U (3M Cache, 3.10 GHz, 2 Cores) ㅣ Intel® Pentium® 4415U (2M Cache, 2.30 GHz, 2 Cores)
	Chipset: ITE Tech IT8786E
	Memory: 4GB Standard, DDR4L 2133 MT/s, Socket 1 x SODIMM (Max. 16GB)
	Storage: SATA 3 (6Gb/s) 2.5 inch SSD 64GB, Support AHCI
	Operating Systems: Windows 7, Windows 8.1, Windows 10 IoT Enterprise, POS Ready 7
	Audio: Realtek ALC662-VD
Display	Type: 15″ TFT LCD, LED Backlight
	Resolution: 1024 x 768
	Brightness: 300 cd/m² (typ.)
	Touchscreen: Projective Capacitive Touch
Interface	Display: 1 x VGA (With Power Output)
	USB: 6 (Rear 2, Back 4, USB 3.0 x 2, USB 2.0 x 4) ㅣ 3 (Reserved for MSR, SCR, i-Button / Touch Controller / Camera), RJ-45
	Serial: 6 (COM 1 with 5V/12V Power Output on 9 Pins, BIOS) (COM2~3 RJ-45 , Full Signal) COM4 RJ-11, Only TX/RX, 12V Power Output, Reserved for CDP) (COM5 Reserved for Cash Drawer Port) (COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR)
	LAN: 1 x Gigabit Ethernet, RJ-45
	Audio: 1 x Line-out
	Power: DC-IN 1 x (3 Pin Connector)
	Extension Slot: Mini PCIe, m-SATA
Power	Power: Supply Adaptor 24V, 2A / 24V, 4A (Powered USB Option)
Physical & Environmental	Operating Temperature: 0 °C ~ 60 °C at 10% to 90% Humidity
	Storage Temperature: -20 °C ~ 80 °C at 10% to 90% Humidity
	Dimensions (W x H x D): 364 x 333 x 210 (mm), 14.3 x 13.1 x 8.2 (in)
	Packing Dimensions (W x H x D): 500 x 470 x 300 (mm), 19.6 x 18.5 x 11.8 (in)
	Net Weight: 5,300g, 11.6lbs
	Packing Weight: 8,000g, 17.6lbs
	Certification: CE, FCC, KC, CB, CCC
	Color: Matte Dark Grey
Options & Peripherals	2nd Displays: 9.7″, 12.1″, 15″ LCD Display, 1024 x 768, Optional Touchscreen
	Customer Display: VFD, 20 Columns x 2 Lines
	I/O Expansion: 1 x COM5 (RJ-45 8 Pins) (Factory Option) ㅣ 1 x Cash Drawer Port (Factory Option) ㅣ1 x Powered USB (24V)
	Storage: 2.5 inch SSD 128GB, HDD 500GB, 1TB
	Magnetic Stripe Reader: Comply with ISO 7811, Support 1 & 2 & 3 Track
	Smart Card Reader: EMV Level 1, 2
	Dallas: Dallas i-button Reader
	Fingerprint: Yes
	Camera: 5M USB Interface (Internal) (Factory Option)
	Wall Mount Kit: VESA-Compatible, 75 x 75 (mm), 100 x 100 (mm)
	Serial Conversion Cable: RJ-45 to D-sub 9
	Speaker: 2 x 0.8W (Stereo)
	WiFi: Mini PCIe for Wireless LAN
