DCR A2 POS Terminal

DCR™ A2, a new addition to the DCR™ series is an Android-based all-in-one POS terminal. With a 13.3″ touchscreen, a customer display, a fast receipt printer and a card reader all integrated into a single terminal, there is no need to consider what to have around it. DCR™ A2 is the perfect solution for business owners in pursuit of maximum return on minimum investment.

  • Groundbreaking All-in-One Design
  • Supercompact Body. Smaller Footprint
  • Brighter Touchscreen, Fast and Intuitive
  • Integrated built-in type
  • Powerful Performance
  • High-speed jam-free 3″ printer
  • Multiple I/O Connectivity
SKU: 203070 Category: Tags: ,
System
 Processors: Dual-core Cortex-A72 up to 1.8GHz
Quad-core Cortex-A53 up to 1.4GHz
ARM® Cortex™-A35
 Memory: 4GB, LPDDR4 (Max. 8GB)
 Storage: eMMC 64GB, On-board (Max. 256GB)
 Operating Systems: Android 9.0 (Pie)

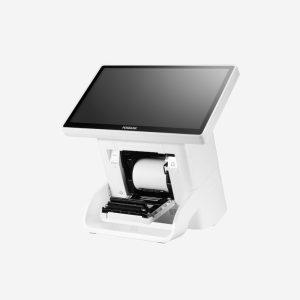

 Printer: 3″ Jam-Free Thermal, Max. 250mm/s, Auto Cutter, Built-in Type
 Audio: HD Audio Codec
Display
 Type: 13.3″ TFT LCD, LED Backlight
 Resolution: 1920 x 1080
 Brightness: 500 cd/m²
 Touchscreen: Projected Capacitive Touch
Interface
 USB: 8 (Rear 5, Internal 3)
External : 5 x USB 2.0
Internal : MSR (HID Class), Printer (Printer Class), USB 2.0
 Serial: 5 (External 2, Internal 3)
External : COM1, COM2 (with 5V Power Output on 9 Pins)
Internal : COM3 (Reserved for MSR), COM4 (Reserved for Customer Display),
COM5 (Reserved for Printer)
 Cash Drawer Port: 1
 LAN: 1 x Ethernet (10/100/1000M)
 Audio: 1 x Line-out
 Power DC-IN: 3Pin DIN Jack
 OTG: 1 x Micro USB 5pin
Power Power Supply: Adapter 24V, 2.5A
Physical & Environmental
 Operating Temperature: 0 °C ~ 60 °C at 10% to 90% Humidity
 Storage Temperature: -20°C ~ 80°C at 10% to 90% Humidity
 Dimensions (W x H x D): 324.6 x 294.1 x 255.3 (mm), 12.8 x 11.6 x 10.1 (in)
 Packing Dimensions (W x H x D): 398 x 338 x 285 (mm), 15.7 x 13.3 x 11.2 (in)
 Net Weight: 4,000g, 8.8lbs
 Packing Weight: 5,600g, 12.3lbs
 Certification: KC, FCC, CE
 Color: Matte Black, High Gloss White
Options & Peripherals
 Customer Display: LCD 16 Columns x 2 Lines (Factory Option)
 Magnetic Stripe Reader: Comply with ISO 7811, Support 1 & 2 & 3 Track (Factory Option)
 Smart Card Reader: EMV Level 1 (Factory Option)
 SD Card Reader: Yes
 NFC Reader: –
 WIFI: WiFi / BT Combo
WLAN (802.11 a/b/g/n, 2.4G + BT (V5.0) combo module, On-board (Factory Option),
Only one antenna
USB Dongle (Factory Option)



Weight 4000 g
Dimensions 324.6 × 294.1 × 255.3 mm
