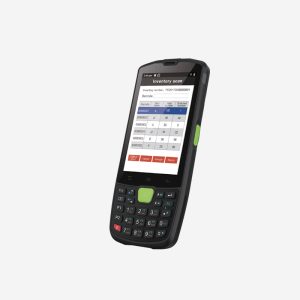

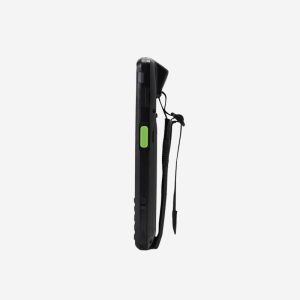

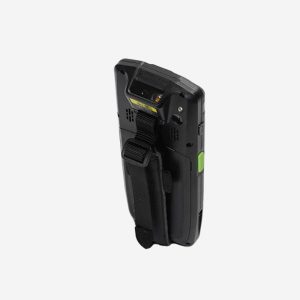

SEUIC AUTOID Q9

AUTOID Q9 is an industrial-grade handheld terminal based on industry application requirements. It has made comprehensive improvements in appearance, performance, battery, protection, etc., representing a new standard of durable capture tools. It is suitable for logistics, retail, manufacturing, public utilities, etc., providing users with efficient and intelligent operating experience.

  • 8-core 2.0GHz
  • Android 10.0(GMS)
  • RAM+ROM:4+64GB/3+32GB(optional)
  • 4.0‘‘ IPS Screen
  • 4G/Dual-band WIFI
  • IP67/1.8m Drop
SKU: 204021 Category: Tag:
Physical Characteristic Dimensions:160(H)×66.3(W)×16.2(T)mm, (17.1mm tall with battery cover)
Weight: 250g (battery included, varies by different configurations)
Display: 4.0 inch, 800(H)×480(W) (WVGA)
Touch Panel: Multi-touch panel, gloves and wet hands supported
Power: Detachable 3.85V rechargeable 5200mAh Li-ion battery
Built-in 60mAh backup li-ion battery
Type-C interface, support quick charge
Expansion Slot: Micro SD Card, 32GB SDHC compatible
Notification: Sound, Vibrator, LED indicator
Keypad: 27 keys, LED(buttons with backlight)
Voice & Audio: Built-in dual loudspeaker, built-in dual microphone, Type-C support earphone

User Environment Operating Temp.: -20 ℃~+50 ℃
Storage Temp.: -40℃ to + 60℃ (Battery included)
-40℃ to + 70℃ (Battery excluded)
Humidity: 5% to 95% RH non-condensing
Drop Specification: Multiple 1.8m drops to marble across the operating temperature range
Tumble Specification: 1000 rounds of tumble from 0.5m, equals to 2000 impacts
Sealing: IP67 per IEC sealing specifications
ESD: ±15kV Air discharge, ±8kV direct discharge

Performance Characteristics
 CPU: MTK Octa core 8*2.0GHz
Operating System: Android 10.0
Memory: RAM+ROM:4+64GB/3+32GB(optional)

Developing Environment Operating System: Android 10.0
Language: Java
Tool: Eclipse / Android Studio

Data Capture Scan Engine: X3 / N6703 / Zebra SE4770
Camera: Front: 5MP
Rear: 13MP
NFC: Support ISO15693, ISO14443A/B (without encryption protocol), ISO14443A tag with encryption protocol (Mifare one S50, S70 and its compatible cards); Support NFC protocol

Connectivity WLAN: IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w (2.4G/5G dual-frequency WIFI)
WWAN: 2G: 850/900/1800/1900MHz
3G: B1/B2/B5/B8/B34/B39/BC0
4G:B1/B2/B3/B5/B7/B8/B20/B34/B38/B39/B40/
B41
Bluetooth: Bluetooth 5.0 (Support BLE)
GNSS: GPS, Beidou, GLONASS(Three in one)

Platforming SEUIC MDM, Standard Android SDK, Wavelink/SOTI for Android



Weight 250 g
Dimensions 160 × 66.3 × 16.2 mm
