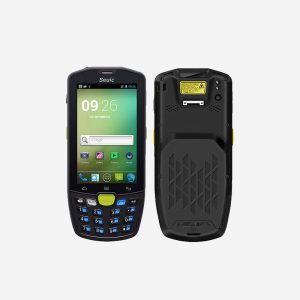

SEUIC AUTOID9 Handheld Computer

The SEUIC AUTOID9 Handheld Terminal is a smart, portable industrial Android Handheld Terminal. The viewing angle of this device is at an exact 178° degree, which means that you are able to get the exact crisp and colour saturation even when glancing at the screen sideways. Furthermore, it also supports glove and wet operations making position detection accurate at all times. It is truly the new generation of touch and visual experience.

Innovative Keypad Button Design to Enhance the User Experience
Wet and Glove Touch Panel
178° Degree Full Viewing Angle
Real-time Data Transmission for Business Operations
Suitable for Pickup/Delivery, Store Management, and Manufacturing Environment

Physical Characteristic		Dimensions: 156(H)×70(W)×22(T)mm Weight: 270g Display: 4.0 inch, 800(H)×480(W) (WVGA) Touch Panel: Multi-touch panel, gloves and wet hands supported Power: Detachable 3.8V 4000mAh rechargeable Li-ion battery Built in li-ion backup battery Standard Micro USB, intelligent identification of PC and special charger; support Charging Dock Expansion Slot: Micro SD Card, 32GB SDHC compatible Notification: Sound, Vibrator, LED indicator Keypad: 17keys/22 crystal keys (buttons with backlight) Voice & Audio: Built-in loudspeaker, built-in microphone

User Environment		Operating Temp: -20 ℃~+50 ℃ Storage Temp: -40℃ to + 60℃ (Battery included) -40℃ to + 70℃ (Battery excluded) Humidity: 5% to 95% RH non-condensing Drop Specification: Multiple 1.5m drops to marble across the operating temperature range Tumble Specification: 1,000 1.64 ft./0.5 m tumbles (2,000 impacts) Sealing: IP67 per IEC sealing specifications ESD: ±15kV Air discharge, ±8kV direct discharge

Performance Characteristics		CPU: Cortex-A53 4-core 1.2GHz, Cortex-A53 8-core 1.8GHz Operating System: Android 5.1/Android 8.1/Android 9.0 Memory: 2GB+16GB/3GB+16GB

Developing Environment		Operating System: Android 5.1/Android 8.1/Android 9.0 Language: Java Tool: Eclipse / Android Studio

Data Capture		Scan Engine: SE955/SE965/UE966: 1D standard range scan engine SEUIC X3/X3 MR: Standard/Middle range 1D/2D imaging engine N6603 SR/N6703: Standard range 1D/2D imaging engine Camera: Maximum Resolution: 3264*2448(taking photo), 1080P 60fps (taking movie) Photo Function: Auto-focus Pixel: 13mega NFC: Support ISO15693, ISO14443A/B(without encryption protocol), ISO14443A tag with encryption protocol(Mifare one S50,S70 and its compatible cards); Support NFC protocol and ID certificates.

Wireless Connectivity		Connectivity: WLAN, WWAN, Bluetooth, GNSS
