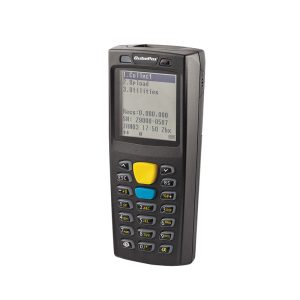

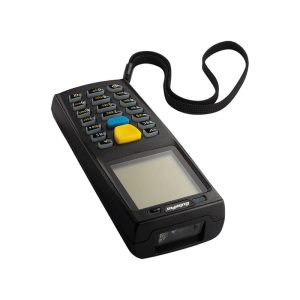

Z9000 Portable Data Terminal

The QubePos Z‐9000 is a portable data terminal built for mobility and performance. It is highly reliable and smartly designed for all data collecting applications. It allows users to achieve maximum efficiency through personalized settings and user-friendly interfaces. The Z-9000 is uniquely shaped to allow excellent precision control.

Simple and Comprehensible Interface
Includes a Wide Variety of Scanning Options such as Linear Image and Laser Reader
32-bit CPU, Wireless Connection, Status LED, and a reliable IP54 seal
Total 21 keys for Full Alpha/Numeric Input and System Control Keypads
Translative LCD to be Aligned with Its Operating Environments
No Programming Background Required

System	Input: Device 1D linear image scan engine
	CPU: 32-bit RISC ARM Cortex-M4 100MHz microprocessor
	Memory: 8MB flash ROM & 4MB RAM
	Display: Mono FSTN, 128 × 128 dots graphic LCD with white back light
	Keypad & Button: TTotal 21 keys for full alpha/numeric input and system control keypads with LED back light
	Indicator: Two-color LED (green & red)
	Beeper: Operation Programmable tone & beep time
	Interface: USB 2.0 full-speed device compliant
Power	Main Battery: 1,150 mAh, 3.7V Li-ion rechargeable battery
Power	Backup Battery: 15 mAh, 3.0V Lithium rechargeable battery
Physical	Dimension: 132.0 × 59.0 × 29.0 mm
	Weight: 157 g (battery included)
Environmental	Operating Temperature: 0°C – 50°C (32°F – 122°F)
	Storage Temperature: -20°C – 60°C (-4°F – 140°F)
	Humidity: 5% – 95% RH (non-condensing)
	Drop Durability: Designed to withstand 1.2M drops
	Tumble Resistance: 0.5M × 1000 times
	Environmental Sealing: IP54 rated sealing
Regulatory:	Safety: FCC, CE, VCCI, BSMI, BSI
Accesory	Standard: Batch cradle, Li-ion battery, USB cable, power adapter, hand strap
Software & Development	(a) Support the ZAC (ZEBEX Application Creator); (b) SDK to support C-Language compatible complier
