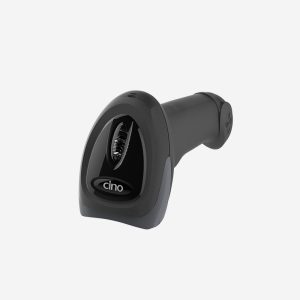

CINO A660 Handheld Scanner

The A660 handheld scanner is built to deliver maximum value. Its versatility and affordable pricing make it a tool of choice for retail applications, as well as general use. It rapidly scans barcodes from product labels, membership cards, and electronic coupons, whether 1D or 2D.

  • Reads most challenging and problematic barcodes
  • Reads electronic barcodes from smartphone screens
  • Superior first-time read
  • Omni-directional scanning
  • Clear audio and visual feedback
  • Optional vibrator for tactile confirmations
  • Withstands drops from 1.8m onto concrete
  • Supports multilingual data output
  • Single scan configuration with the iCode
SKU: 204106 Category: Tag:
Performance Characteristics
 Image Sensor: 640 x 480 Pixels
 Print Contrast: 20% minimum reflectance
 Light Source: 660nm LED
 Imager Field of View: 36 ̊ H x 27 ̊ V
 Minimum Resolution: 3 mil Code 39, 5 mil DataMatrix
 Reading Range *1: 13 mil UPC/EAN up to 15.6″
 Roll, Pitch, Skew: Roll: 360 ̊; Pitch: ± 75 ̊; Skew: ± 65 ̊
 Motion Tolerance: Up to 627 cm/s (247 in/s)
 Host Interfaces: USB HID (USB Keyboard)
USB VCOM (USB COM port emulation)
Standard RS232
 Configuration Setup: FuzzyScan Barcode commands
FuzzyScan iCode
FuzzyScan PowerTool
 Data Processing: DataWizard Premium
Physical Characteristics
 Dimensions: 97.0 mm (L) x 65.0 mm (W) x 156.0 mm (D)
3.81 in. (L) x 2.55 in. (W) x 6.14 in. (D)
 Weight: 135g (cable excluded)
 Color: Black, Light Gray
 User Feedback: LEDs for power, good read, and status
Programmable beeper
Optional vibrator
 Operating Voltage: 5VDC ± 10%
 Operating Current:
Operating : Typical 310 mA @5VDC
Standby : Typical 210 mA @5VDC
Supported Symbologies
 1D Linear Codes: Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, GS1 DataBar, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey
 2D Codes: PDF417, Micro PDF417, Codablock F, Code 16K, Code 49, Composite Codes, DataMatrix, MaxiCode, QR Code, Aztec, MicroQR
 Postal Barcodes: Australian Post, US Planet, US Postnet, Japan Post Posi LAPA State Code
User Environment
 Drop Specifications: Withstands multiple drops from 1.8m (6ft) to concrete
 Environmental Sealing: IP52
 Operating Temperature: -10 ̊C to 50 ̊C (14 ̊F to 122 ̊F)
 Storage Temperature: -40 ̊C to 70 ̊C (-40 ̊F to 158 ̊F)
 Humidity: 5% to 95% relative humidity, non-condensing
 Ambient Light Immunity: 0 ~ 100,000 lux
 ESD Protection: Functional after 15kV discharge
Safety & Regulatory
 Safety *2: LED Eye Safety IEC62471, Exempt Group
 Environmental: Compliant with RoHS directive
 Cables: RS232 Serial Cable
USB Cable
USB Power Supply Cable
 Others: 5VDC Power Supply Unit
US100 Smart Stand
US50 Hands-Free Stand
Universal Holder


Weight 135 g
Dimensions 97 × 65 × 156 mm
