D300M Thermal Printer

The QubePos D300M is a high-speed thermal receipt printer designed for repetitive tasks for limited operating time applications, especially for retail stores and fast-food applications. With the reliable printer module, it can print in prolonged durations while keeping the printing noise to a minimum. Along with a multi I/O Interface, D300M is the best choice for high-quality demand solutions.

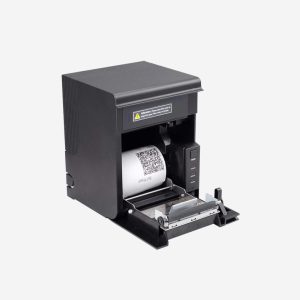

  • Front Paper Loading 80mm Thermal Receipt Printer
  • Reliability: Automatic Resumes from Cutter Jam Error
  • Print Layout: Vertical, Wall-Hung
  • IP Rating: Waterproof, Anti-Dust, Smoke-Proof (Suitable for kitchen printing)
  • Code Printing: QR Code, 2D Barcode
SKU: 201009-1 Category: Tags: ,
Printing Printing method: Direct thermal
Paper width: 79.5±0.5mm Φ80mm
Print width: 72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm
Column capacity: 576 dots/line(adjustable by command)
Printing speed: 300 mm/s Max.

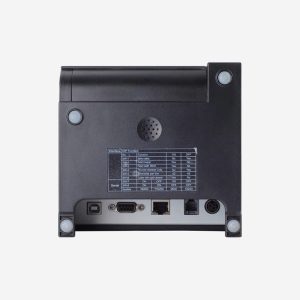

Interface: USB+Serial+Lan
Line spacing: 3.75mm (Adjustable by commands)
Column number: 80mm paper: Font A – 42 columns or 48 columns/Font B – 56 columns or 64 columns/Chinese,traditional Chinese – 21 columns or 24 columns
Character size: ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese,traditional Chinese:3.0×3.0mm(24×24 dots)
Cutter Auto cutter: Partial
Barcode Character Extension character Sheet: PC347 (Standard Europe), Katakana, PC850 (Multilingual), PC86 (Portuguese), PC863 (Canadian-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic#2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251)
2D Barcode: QR Code / PDF417
Input buffer: 2048 Kbytes
NV Flash: 256 Kbytes
Power Power adaptor: Input: AC110V/240V、50~60Hz Output:  DC 24V/2.5A
Printer input: DC 24V/2.5A
Cash drawer: DC 24V/1A
Physical characteristics Weight: 1.44KG
Dimensions: 144.5×146×188.5mm ( D×W×H)
Environmental Requirements Operation environment: Temperature :0~45℃   humidity: RH 10~80%
Storage environment: Temperature: -10~60℃ humidity: RH 10~90%
Reliability Cutter life: 1.5 million cuts
Printer head life: 150 KM
Software Emulation: ESC/POS
Driver: Windows/JPOS/Linux/Android/Mac/ OPOS
Utility: Windows & Linux test Utility
SDK: iOS/Android/Windows
Weight 1500 g
Dimensions 145 × 146 × 189 mm
