DCR X86 (Windows) POS Terminal

DCR™ X86 is a new breed of POS terminal with a groundbreaking all-in-one design and powerful performance combined. With an 13.3″ touchscreen, a customer display, a fast receipt printer, and a card reader all integrated into a single terminal, there is no need to consider what to have around it. DCR™ X86 is the perfect solution for business owners in pursuit of maximum return on minimum investment.

  • Groundbreaking All-in-One Design
  • Supercompact Body. Smaller Footprint
  • Brighter Touchscreen, Fast and Intuitive
  • Integrated built-in type
  • Powerful Performance
  • High-speed jam-free 3″ printer
  • Multiple I/O Connectivity


SKU: 203069 Category: Tags: ,
 Processors: Intel® Celeron® J1900 (2M Cache, 2.0/2.42 GHz(Burst), 4 Cores), Fanless
 Memory: 4GB Standard, DDR3L 1600 MT/s, Socket 1 x SODIMM
 Storage: 1. Form Factor
M.2 2242-D5-B-M (No capacity limit.)
2. SATA Interface
3. Mountable quantity: M.2 2242 64GB x 1 (Default)
 Operating Systems: Windows 7, Windows 8.1, Windows 10 IoT Enterprise, POS Ready 7

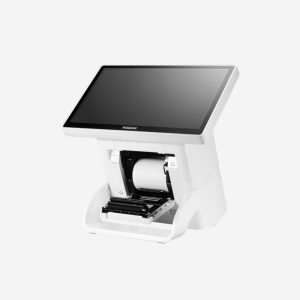

 Printer: 3″ Jam-Free Thermal, 200~250mm/s, Auto Cutter (Interface : Serial, USB), Built-in Type
 Audio: HD Audio Codec
 Type: 13.3″ TFT LCD, LED Backlight
 Resolution: 1920 x 1080
 Brightness: 500 cd/m²
 Touchscreen: Projected Capacitive Touch
 USB: 4 (Rear 4, USB 2.0 x 3, USB 3.0 x 1)
 Serial: Serial x 6
COM1~2 (with 5V/12V Power Output on 9 Pins, Jumper)
COM3 (with 5V/12V Power Output on 9 Pins, BIOS)
COM4 (Only TX/RX, 12V Power Output, Reserved for CDP)
COM5 (Reserved for Printer)
COM6 (RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR)
 LAN: Gigabit Ethernet x 1
 Cash Drawer Port: 1
 Power DC-IN: 3Pin DIN Jack
 PS/2: 1 (Reserved for Keyboard or Mouse)
 Audio: Line-out x 1, Mic-in x 1
 Display: VGA x 1 (With Power Output)
Power Power Supply: Adapter 24V, 2.5A
Physical & Environmental
 Operating Temperature: 0°C ~ 60°C at 10% to 90% Humidity
 Storage Temperature: -20°C ~ 80°C at 10% to 90% Humidity
 Dimensions (W x H x D): TBD
 Packing Dimensions (W x H x D): TBD
 Net Weight: TBD
 Packing Weight: TBD
 Certification: TBD
 Color: Matte Black, High Gloss White
Options & Peripherals
 Customer Display: VFD 20 Columns x 2 Lines (Factory Option)
 Magnetic Stripe Reader: Comply with ISO 7811, Support 1 & 2 & 3 Track (Factory Option)
 Smart Card Reader: EMV Level 1 (Factory Option)
 SD Card Reader: Yes
 WIFI: Yes


Weight 4000 g
Dimensions 324.6 × 294.1 × 255.3 mm
