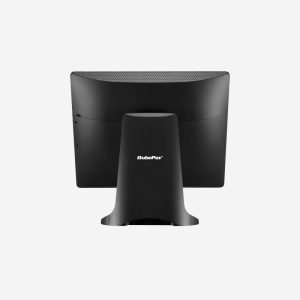

Apexa TL-1500 POS Terminal

APEXA TL-1500 is a POS terminal that can perform the best performance with the latest CPU. The compact monitor screen helps users to utilize a small space in various ways. Simply built for today’s retail and hospitality businesses.

  • Designed to provide quick access to I/O interfaces and storage
  • Ideal for mission-critical applications in retail and hospitality environments
  • Industrial-grade LED panel offers bright and crisp images, extended product life and energy efficiency
  • Industry-standard VESA gives flexible mounting options
  • With PCAP touch display, the APEXA® TL 1500 delivers intuitive and familiar experiences similar to smartphones or tablets
SKU: 203058 Category: Tags: ,
System
 Processors: Intel® Core™ i5-1135G7 Processor 8M Cache, up to 4.20 GHz
Intel® Core™ i3-1115G4 Processor 6M Cache, up to 4.10 GHz
 Chipset: Intel® Tiger Lake
 Memory: 4GB Standard, DDR4 3200 MT/s, Socket 1 x SODIMM (Max. 32GB)
 Storage: SATA 3 (6Gb/s) 2.5 inch SSD 64GB, Support AHCI
 RAID: RAID 0,1
 Operating Systems: Windows 10 IoT Enterprise
 Audio: HD Audio Codec
Display
 Type: 15″ TFT LCD, LED Backlight
 Resolution: 1024×768
 Brightness: 300 cd/ m2 (typ.)
 Touchscreen: Projective Capacitive Touch
Interface
 Display: VGA x 1 (With Power Output)
 USB: 6 (Rear 2, Back 4, USB 3.0 x 2, USB 2.0 x 2)
3 (Reserved for MSR, SCR, i-Button/Touch Controller/Camera), RJ-45
 Serial: 6 (COM 1 with 5V/12V Power Output on 9 Pins, BIOS)
(COM2~3 RJ-45 , Full Signal)
(COM4 RJ-11, Only TX/RX, 12V Power Output, Reserved for CDP)
(COM5, Full Signal)
(COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR)
 Back I/O: Cash Drawer Port(GPIO Communication) (RJ-11 6 Pins) x 1 + USB 2.0 x 2 (Default)
 Optional I/O:
Gigabit Ethernet x 1 (RJ-45) + USB 2.0 x 2 (Factory option)
12V Powered USB 2.0 x 1 + 24V Powered USB 2.0 x 1 (Factory option)
12V Powered USB 2.0 x 1 + 12V Powered USB 2.0 x 1 (Factory option)
24V Powered USB 2.0 x 1 + 24V Powered USB 2.0 x 1 (Factory option)
12V Powered USB 2.0 x 1 + USB 2.0 x 1 (Factory option)
24V Powered USB 2.0 x 1 + USB 2.0 x 1 (Factory option)
COM5 x 1 (RJ-45 , Full signal) + USB 2.0 x 2 (Factory option)
USB A 2.0 x 4 (Factory option)
One option attachable at a time
 LAN: Gigabit Ethernet x 1 (RJ-45)
 Audio: Line-out x 1
 Power DC-IN: 3 Pin DIN Jack
 Extension Shot: M.2 for WiFi/BT, SSD
Power Power Supply: Adapter 24V, 2.5A (Nomarl) / 24V, 6.35A(Powered USB Option)
Physical & Environmental
 Operating Temperature: 0 °C ~ 50 °C at 10% to 90% Humidity
 Storage Temperature: -20 °C ~ 80 °C at 10% to 90% Humidity
 Dimensions (W x H x D): 364 x 333 x 210 (mm), 14.3 x 13.1 x 8.2(in)
 Packing Dimensions (W x H x D): 500 x 470 x 300 (mm), 19.6 x 18.5 x 11.8(in)
 Net Weight: 5,300g, 11.68 lbs
 Packing Weight: 8,000g, 17.63 lbs
 Color: Dark Grey, High Gloss White
Options & Peripherals
 2nd Displays: 9.7″, 12.1″, 15″ LCD Display, 1024 x 768, Optional Touchscreen
 Customer Display: VFD, 20 Columns x 2 Lines
 Storage: 2.5 inch SSD 128GB, HDD 500GB, 1TB
 Magnetic Stripe Reader: Comply with ISO 7811, Support 1 & 2 & 3 Track
 Smart Card Reader: EMV Level 1
 Dallas: Dallas i-button Reader
 Fingerprint: Yes
 Wall Mount Kit: VESA-Compatible, 75 x 75(mm), 100 x 100(mm)
 Serial Conversion Cable: RJ-45 to D-sub 9
 Speaker: 2 x 1W (Stereo) (Factory Option)
 WiFi/BT: M.2 for WiFi/BT
 TPM: Support
Weight 5300 g
Dimensions 500 × 470 × 300 mm
