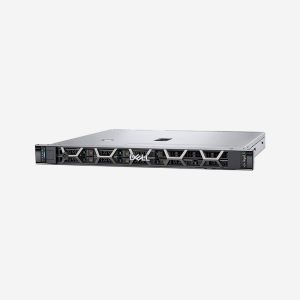

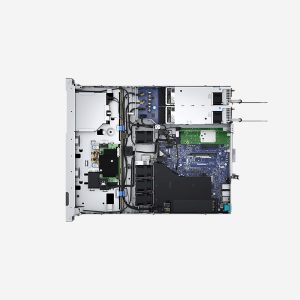

DELL POWEREDGE R350

The Dell EMC PowerEdge R350 addresses evolving compute demands with an easy to manage rack server designed for businesses looking for affordable enterprise features.

  • Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
  • Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
  • Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
  • Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools
SKU: E2324G-8GB-600B-355 Category: Tag:
ProcessorUp to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
Memory16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s ,Supports registered ECC DDR4 DIMMs only
Storage controllers• Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
• Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB
• External PERC (RAID): PERC H840, HBA355e
Drive Bays
Front bays:
• 0 drive bay
• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
• Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB
• Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB
Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB

Power Supplies
• 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)

Cooling optionsAir cooling

Fans
• Standard fans/High performance Silver fans/High performance Gold fans

• Up to six hot swap fans


Form Factor2U rack server

Embedded Management
• iDRAC9
• iDRAC Service Module
• iDRAC Direct
• Quick Sync 2 wireless module

Integrations and Connections
• BMC Truesight
• Microsoft System Center
• OpenManage Integrations
• Red Hat Ansible Modules
• VMware vCenter and vRealize Operations Manager

• IBM Tivoli Netcool/OMNIbus
• IBM Tivoli Network Manager IP Edition
• Micro Focus Operations Manager
• OpenManage Connections
• Nagios Core
• Nagios XI

Security
• Cryptographically signed firmware
• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Operating System and Hypervisors
• Canonical Ubuntu Server LTS
• Citrix Hypervisor
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

PCIe
Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slots
• 3 x16 Gen4 low profile
• 2 x16 Gen4 low profile (optional)
• 1 x8 Gen3 (x4 lane) low profile

Network Options1 x OCP 3.0

Embedded NIC2 x 1 GbE LOM

MobilityOpenManage Mobile

OpenManage Software
• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage SupportAssist plugin
• OpenManage Update Manager plugin
