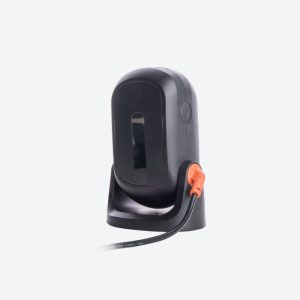

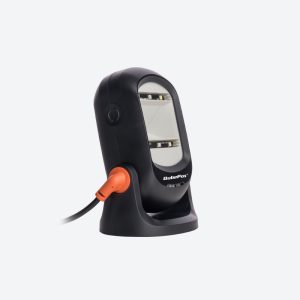

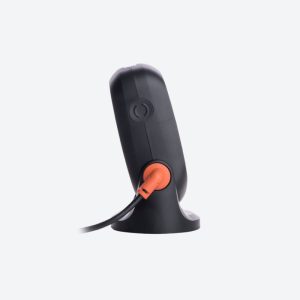

QubePos LYRA L-9080i Scanner

The LYRA family is a multi-form, compact size, omni-directional presentation area-imaging scanner engineered to decode all standard 1D and 2D barcodes. Its revolutionary imaging technology is housed in an elegant, stylish, yet durable design. The
compact size and small foot-print design, makes it the ideal solution for space-constrained environments.

  • Scans most 1D and 2D bar codes.
  • Support hands-free and handheld scan.

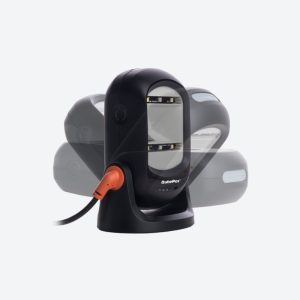

  • Adjustable scanner head forward & backward to 180 degree.
  • Lightweight & ergonomic design, best cost-eective investment.
  • Multi-code mode; simultaneous scanning of a group of bar codes.
SKU: 204511 Category: Tag:
Performance
 Light source: Visible White LED
 View of filed: Horizontal – 55°, Vertical – 35°
 Resolution: 1280 (H) x 800 (V) pixels
 3.0 mil (Code 39), 8 mil (QR Code)
 Scan speed: 60 scans per second
 Pitch: ±60°(from front to back)
 Skew: ±60°(from plane parallel to symbol(side- to-side))
 Roll : 360°
 Indicators: A trigger button can enable / disable aimer for aiming reading

Physical Characteristics
 Body Weight: Approx.315g
 Material: ABS Plastic
 Dimension (WxDxH): 97.89 x 74.90 x 137.94 mm
 Color Available: Black

Electrical Characteristics
 Interface: RS232 : USB
 Supply Voltage: DC Adaptor +5V ±5% : USB Power
 Stand-by (Typ.): 95 mA : 90 mA
 Operation (Typ.): 320 mA: 310 mA

Environmental
 Operating Temp: 0°C to 50°C ( 32°F to 122°F )
 Storage Temp.: -20°C to 70°C ( -4°F to 158°F )
 Relative Humidity: 5 % to 95% (Non-condensing)
 Ambient light: 100,000 Lux Max. (Sunlight)
 Sealing: Designed to IP42 water and dust protection

Reliability
 Life Time MTBF(Calculated): 50,000 hours
 High Temp.: 70°C , 48 hours
 Low Temp.: -20°C , 48 hours
 Cable Bending Test: 25,000 times minimum (30 times/min @ 500g/90°)
 Drop Resistance: 47.24 inches(120cm) drop on concrete surface



Weight 315 g
Dimensions 97.89 × 74.9 × 137.94 mm
