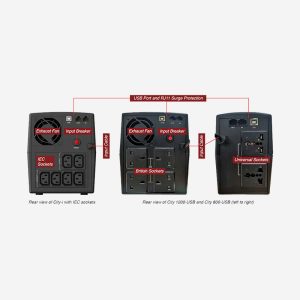

Neuropower City 800-USB UPS

Neuropower’s City Series was developed to handle challenging power conditions, where uptime, user convenience and space planning are critical. The line interactive City UPS is a powerful and compact device, compatible with the advanced Power Master cloud monitoring software.

Designed using digital microprocessors
LCD display for UPS’s status indicator
Built in automatic voltage regulator (AVR) for voltage stabilization
Comes with 4 x Grounded British sockets with safety shutter
Built in smart communication port
Cold start and off charging mode

Input		Nominal (VAC): 230
		Range (VAC): 162-290
		Frequency (Hz): 50/60Hz (Auto sensing)

Output		Nominal (VAC): 230
		Regulation (VAC): 230 ± 10%
		Frequency (Hz): 50 / 60 ± 1%
		Waveform (Battery): Simulated Sinewave
		Overload Protection: Circuit Breaker or Inner Firmware Protection
		Outlets: 4 x British Sockets

Battery		Rating (QTY): 12V9AH (2)
		Type: Sealed Lead Acid Maintenance Free
		Recharge Time: 6-8 Hours to 90% After Complete Discharge

Transfer Time		Response Time: Typically 2-4 ms

Audible Alarm		Beeping: Battery Mode, Battery Low, Overload & Fault

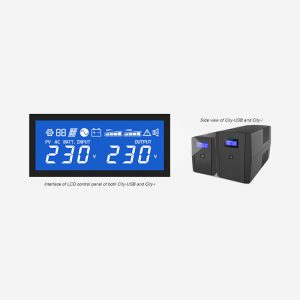

Display		LCD: Display output and input voltage, load & battery percentage and operating mode

Surge Protection		Modem/Telephone: RJ45/11 Port

UPS Monitoring		Software: PowerMaster

Physical		Dimension, W x D x H (mm) : 148 x 178 x 298
Physical		Weight (kg) 4.5

Operating Environment		Temperature (°C): 0 to 40
		Humidity: 0 – 90% without condensation
		Noise Level @ 1 Meter (dB): < 40

Design Standards		Safety & EMC: CE and SIRIM
