Keyence Handheld Computer BT-A500

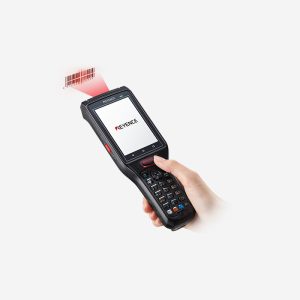

The value of a Handheld Computer is determined by accuracy and reading speed. The BT-A500’s hybrid scan system takes these basic functions to a whole new level. Ensuring the highest reading efficiency means minimizing the workload on users. The BT-A500 sets a new standard for Handheld Computers thanks to its hybrid scan system.

  • Instant reading of near and far codes
  • Instant reading of codes under any conditions
  • Batch reading of multiple codes
  • Reading printed text, numbers and dates
  • Optimizer design for fast operation with android OS
  • Excellent durability for tough conditions
  • Remote device management significantly reduces support work
  • Advanced support software
SKU: 204028 Category: Tag:
 CPU: QualcommTM Quad-core
 OS: Android 10
Main Memory
 ROM 16 GB
Display LCD
 Type: 3.5″ TFT colour LCD
 Resolution: 320 (H) × 480 (V)
 Backlight: High-intensity white LED
 Operation Status LED: 3-colour LED (red, green, blue, yellow, cyan, magenta, white)
 Hard Keys Type: Set of arrow keys × 1 (4 directions), Triggers × 3 (Centre key × 1, Side keys × 2), Customisation keys × 2 (P1 key, P2 key),
Data input keys × 14 (numeric keypad, ENT key, Clear key, Minus key, Symbol key),
Function keys × 4 (White key, Orange key, Blue key, SFT key), Power key × 1
 Touch Panel Electrostatic capacitance method (Dragontrail Pro)
 Reading Light Source: High-intensity white LED
 Pointer Light Source:
Visible semiconductor laser (658 nm),
Output: 1.0 mW,
Class 2 laser product (IEC 60825-1)
 Minimum Resolution: 2D code: 0.169 mm, Barcode: 0.076 mm
 Reading Distance*2: 65 to 450 mm
(CODE39 narrow bar width: 0.254 mm)
100 to 745 mm
(CODE39 narrow bar width: 0.508 mm)
45 to 235 mm
(QR cell size: 0.254 mm)
25 to 440 mm
(QR cell size: 0.508 mm)
 Reading Width (Field Range)*2: 178 × 107 mm (Reading distance: 200 mm)
 Supported Codes: UPC/EAN/JAN (add-on code support), CODE128, GS1-128, CODE39, Codabar (NW-7), CODE93, ITF, COOP 2of5, Industrial 2of5, QR code, Micro QR, DataMatrix (ECC200), PDF417, GS1 DataBar,Composite, Postal
Wireless Communication
 Wireless Radio: IEEE 802.11a/b/g/n/ac
 Frequency Range: BT-A500: 2.4 GHz (b, g, n:1 to 13 ch), 5.2 GHz, 5.3 GHz, 5.6 GHz (a/n/ac) / BT-A500GM: 2.4 GHz (b, g, n:1 to 13 ch), 5.2 GHz, 5.3 GHz, 5.6 GHz, 5.8 GHz (a/n/ac)
 Security: WEP (64/128 bits), WPA, WPA2 WPA encryption method: TKIP/AES Authentication: PSK, PEAP, EAP-TLS, EAP-TTLS, EAP-PWD
 Wireless Standard Bluetooth® V4.2 BR/EDR/LE / Supported Profiles A2DP, AVRCP, BNEP, HID, IOPT, OPP, PAN, SPP / Distance Approx. 10 m (line-of-sight)
External Media Supported Media: USB memory
Power Source
 Type: Dedicated lithium-ion battery pack
 Capacity: 3250 mAh
 Charging Time: Approx. 5.5 hours (room temperature)
 RAM Backup*1*2 : Electric double-layer capacitors: 3 minutes
 Audio Speaker, Microphone
 Vibration Available
 Camera 13 megapixels, Auto-focus
 Sensor Accelerometer, Gyroscope, Ambient light
Environmental Resistance
 Enclosure Rating IP65
 Drop Resistance*2 Onto concrete from 2.0 m (from 3.0 m with rubber bumper); Up to 20000 impacts from 30 cm
 Operating Temperature*3 -20 to +50°C, Charging: 0 to +40°C (No freezing)
 Operating Humidity 20 to 85% RH (No condensation)
 Storage Temperature -20 to +60°C (No freezing)
 Storage Humidity 20 to 85% RH (No condensation)
Size Dimensions 204 × 73.2 × 40.5 (30.0) mm (grip thickness)
Weight Approx. 265 g (with rechargeable battery pack attached)


Weight 265 g
Dimensions 204 × 73.2 × 40.5 mm
