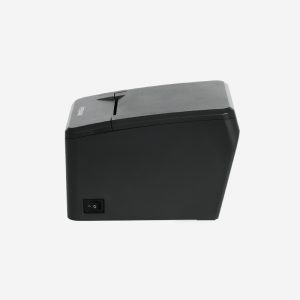

POSBANK A5E(G) Printer

A5E is the most practical POSBANK’s POS printer family. The A5E printer’s fast printing speed and high reliability make it an ideal POS printer for crowded checkout areas and/or large volume printing is required. POSBANK, given its significant expertise and experience in providing high-performance POS printing solutions for the worldwide retail and hospitality market.

3″ Direct Thermal POS Printer with Auto Cutter
Fast Printing Speed of 230mm/s
High Resolution of up to 203dpi
Design for Limited Counter Space
Advanced Reliability for Large Volume Printing
USB + Serial + Ethernet Interface
Drop-in Paper Loading

Printing		Printing method: Direct thermal
		Printing speed: 230 mm/s
		Print Resolution: 203 dpi (8dots/mm)
		Print Width: 72mm / 48mm
		Character Size: Font A 12 x 24 dots, Font B 9 x 17 dots
		Character per Line: Font A 42, Font B 56
		Character Sets: PC437/Katakana/PC850/PC860/PC863/PC865/PC857/PC737/PC866/PC852/PC858/KU42/TIS11/TIS18/PC720/WPC775/PC855/PC862/
		PC864/ISO8859-2/ISO8859-7/WPC1250/WPC1251/WPC1253/WPC1254/WPC1255/WPC1256/WPC1257/WPC1258/MIK/PC755/Iran/IranII/
		Latvian/ISO8859-1/ISO8859-3/ISO8859-4/ISO8859-5/ISO8859-6/ISO8859-8/ISO8859-9/PC856/PC3848/ISO8859-15/ISO8859-7/WPC1252
		Barcode Types 1D : UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 2D : QR Code, PDF417
		Graphics: Supporting User-Defined Fonts, Graphics, Logos

Media		Type: Thermal Roll Paper
		Paper: Feed Friction Feed
		Loading: Drop in
		Width: 58mm, 80mm
		Roll Diameter: Max. 83mm
		Thickness: 0.056~0.13mm
		Auto Cutter: Full or Partial Selectable
		Partition: 2 inch (58mm)

Reliability		MCBF: 60million Lines
		TPH: 150km
		Auto Cutter: 1.5million Cuts

General		Interface: USB + Serial + Ethernet
		Receive Buffet: 4kb
		Safety Standards: CE,FCC,KC
		Dimensions(W x H x D): 141 x 127 x 191 (mm), 5.55 x 5 x 7.52 (in)
		Packing Dimensions(W x H x D): 270 x 198 x 175 (mm), 10.63 x 7.8 x 6.89 (in)
		Weight: 900g, 1.98lbs
		Color: Dark Grey, White
		What’s in the Box: A5, Power Supply(Adapter, Power Cord), USB+ Serial Cable, Paper Roll(30Ø), Installation Guide
		Printer Driver: Windows / OPOS
		Utility: NV
		Sensors: Paper End, Cover Open
		Drawer: 2 Port (via Y-Type Adaptor)
		Power Supply: 24V, 2A (3 Pin DIN Plug)
		Temperature & Humidity:
		Operating : 0 ~ 45oC, 10 ~ 80% RH (No condensations)
		Storage : -20 ~ 60oC, 10 ~ 90% RH (No condensations)
