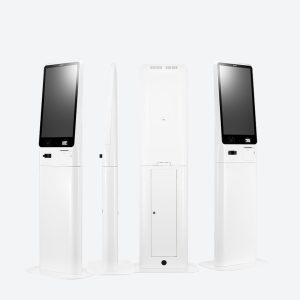

POSBANK BIGPOS® 2700 Terminal

The POSBANK BIGPOS 2700 Self Service Kiosks is a whole new self-service kiosk for retail stores and quick service restaurants, designed to offer an engaging experience and ensure maximum integration between the physical retail space and the digital world. It is the ideal solution to optimize management processes, improve service and connect directly with your customers.

  • 27″ FHD Display Kiosk with PCAP Touchscreen
  • Intel® Core™, Pentium®, Celeron® Processors
  • Windows and Android OS Supported
  • Modular Design for Effortless Setup
  • Quick Access to Components for Easy Maintenance
  • Flexible Installation (Floor, Wall, or Table)
SKU: 212001-1 Category: Tags: ,
Processor Windows



Android
Intel® Core™ i5-7200U (3M Cache, 2.50/3.10 GHz(Turbo), 2 Cores)
Intel® Pentium® 4415U (2M Cache, 2.30 GHz, 2 Cores)
Intel® Celeron® 3965U (2M Cache, 2.20 GHz, 2 Cores)
Intel® Celeron® J1900 (2M Cache, 2.0/2.42 GHz(Burst), 4 Cores), Fanless
Cortex™- A17 Quad-Core (Up to 1.8GHz )
Chipset Windows

7200U/4415U/3965U Intel® Kaby Lake
J1900 Intel® Bay Trail
Memory Windows

Android
7200U/4415U/3965U 4GB Standard, DDR4 2133 MT/s, Socket 1 x SODIMM (Max. 16GB)
J1900 4GB Standard, DDR3L 1600 MT/s, Socket 1 x SODIMM
1GB Standard, DDR3L 1600 MT/s, On-board (Max. 2GB Optional)
Storage Windows

Android
7200U/4415U/3965U SATA 3 (6Gb/s) 2.5 inch SSD 64GB, Support AHCI
J1900 SATA 2 (3Gb/s) 2.5 inch SSD 64GB, Support AHCI (Celeron)
eMMC 8GB, On-board (Max. 64GB Optional)
OS Windows

Android
7200U/4415U/3965U Windows 10 IoT Enterprise
J1900 Windows 7, Windows 8.1, Windows 10 IoT Enterprise, POS Ready 7
Andoird 7.X (Nougat)
Audio Windows
Android
Realtek ALC662-VD
Realtek ALC5640
Display Type: 27″ TFT LCD, LED Backlight
Resolution: 1080 x 1920
Brightness: 300 cd/m² (typ.)
Touch Screen: Projective Capacitive Touch
Response: 12 ms
Contrast Ratio: 3000 (typ.)
LAN 1 x Gigabit Ethernet, RJ-45
Power DC-IN 1 x (3 Pin Connector)
USB Windows



Android

7200U/4415U/3965U: 6 (Rear 2, Back 4, USB 3.0 x 2, USB 2.0 x 4)
3 (Reserved for MSR, SCR, i-Button/Touch Controller/Camera), RJ-45
J1900: 6 (Rear 2, Back 4, USB 2.0 x 6)
3 (Reserved for MSR, SCR, i-Button/Touch Controller/Camera), RJ-45
6 (Rear 2, Back 4, USB 2.0 x 6)
3 (Reserved for MSR, SCR/Touch Controller/Camera), RJ-45
Serial Port 6 (COM 1 with 5V/12V Power Output on 9 Pins, BIOS, Reserved for NFC)
(COM2~3 RJ-45 , Full Signal), Reserved for Cash Module)
(COM4 RJ-11, Only TX/RX, 12V Power Output, Reserved)
(COM5 Reserved for Printer)
(COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR, IC Card)
Power Power Supply: Adaptor 24V, 6.35A
Pedestal Material: Galvanized Steel Plate
Material Thickness: 1.2T
Component Access: Security Locks with 7-Pin Tumbler / Rear Security Door
Physical & Environmental Operating Temperature: 0 °C ~ 60 °C at 10% to 90% Humidity
Storage Temperature: -20 °C ~ 80 °C at 10% to 90% Humidity
Dimensions (W x H x D):
System : 43 x 88 x 14 cm, 16.9 x 34.6 x 5.5 in
Pedestal : 43 x 87 x 14 cm, 16.9 x 34.2 x 5.5 in
Baseplate : 60 x 1 x 45cm, 23.6 x 0.39 x 17.7 in
Packing Dimension (W x H x D):
System : 57 x 100 x 26 cm, 22.4 x 39.3 x 10.2 in
Pedestal : 57 x 100 x 26 cm, 22.4 x 39.3 x 10.2 in
Baseplate : 63 x 6 x 48cm, 24.8 x 2.4 x 18.9 in
Net Weight:
System : 15 kg
Pedestal : 13 kg
Baseplate : 20 kg
Packing Weight:
System : 21kg
Pedestal : 17kg
Baseplate : 21kg
Certification: CE, FCC, KC
Color: High Gloss White, High Gloss Black, Custom Colors Available
Options & Peripherals










Windows
Android



Storage: 2.5 inch SSD 128GB, HDD 500GB, 1TB
Built-in Printer : 3″ Jam-Free Thermal, Max. 250mm/s, Auto Cutter (Interface : Serial, USB)
Barcode Scanner: 1D, 2D Barcode
Camera: 2M USB Interface (Internal) (Factory Option)
Magnetic Stripe Reader: Comply with ISO 7811, Support 1 & 2 & 3 Track
Smart Card Reader: EMV Level 1, 2
NFC Reader: MIFARE, FeliCa, ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693
Wall Mount Kit: VESA-Compatible, 100 x 100 mm, 200 x 200 mm
Speaker: 2 x 5W (Stereo) (Factory Option)
Wifi:
Mini PCIe for Wireless LAN (Core/Pentium) │ USB Dongle (Celeron)
On Board (Factory Option)
Custom Options: Customer-Assigned EMV Terminal Bracket, Bill/Coin Acceptor, Document Reader(Passports/IDs), Ticket/Document Printer, UPS (Uninterruptible Power Supply)
Weight 43000 g
Dimensions 1350 × 4260 × 1780 mm
