Operational | Aiming Element: 617 nm LED | |
Illumination Element: 617 nm LED | ||
Optical System: 1280H×800V pixels (1.0M) | ||
Scan Angle: 44.4° horizontal; 29.1° vertical | ||
Depth of Field: Code39 (5 mil): 0 – 50 mm EAN13 (13 mil): 0 – 210 mm (Note: DOF may vary depending on environment condition and barcode quality.) |
||
Min. Bar Width: 6.8 mil (PDF 417), 5 mil (Code 39) | ||
Print Contrast: 30% @ UPC/EAN 100% | ||
Indicator: Color LED | ||
Programmable Operation: Scan Mode, Beeper tone | ||
System Interface: RS-232, USB | ||
Physical | Dimension: 145.0 × 80.2 × 97.0 mm | |
Weight: 250 g | ||
Power | Input Voltage: 5 VDC ±10% | |
Operating Current: 280 mA typical | ||
Regulatory | EMC: CE, FCC, VCCI, BSMI | |
Safety: IEC 62471 Exempt | ||
Environmental | Operating Temperature: 0°C – 50°C (32°F – 122°F) | |
Storage Temperature: -40°C – 70°C (-40°F – 158°F) | ||
Humidity: 5% – 95% RH (non-condensing) | ||
Drop Durability: Designed to withstand 1M drops | ||
Decoding Ability | 1D Barcode: UPC/EAN [UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland), ISSN, Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Matrix 2 of 5, Code11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked) |
|
2D Barcode: PDF417, MicroPDF417, Composite Codes (CC-A, CC-B, CC-C) , Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro) |

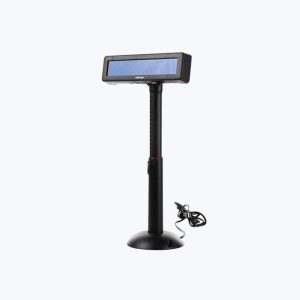

POSIFLEX PD-320U Customer Display
The PD-320U is a standalone LCD customer pole display capable of desktop mounting and height adjustment. The customer display can be used to display the purchased items,
prices, amounts and changes to customers. The customer display also capable of displaying advertising messages or any messages controlled by the host computer.
- Two-line display with 20 characters/line
- Standalone LCD Customer Line Display
- Blue character and yellow background
- Large character size for easy viewing
- Adjustable pole height
- Colour : Black
Weight | 480 g |
---|---|
Dimensions | 200 × 116 × 265 mm |
