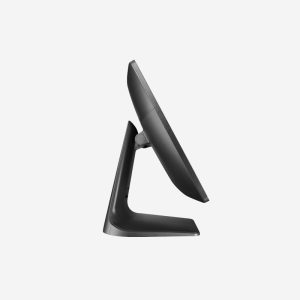

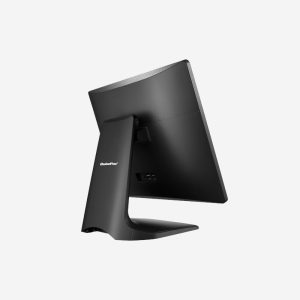

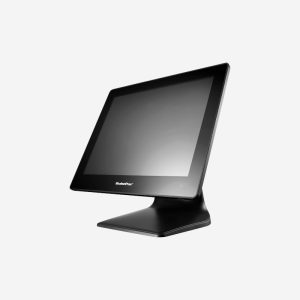

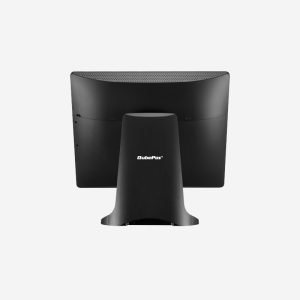

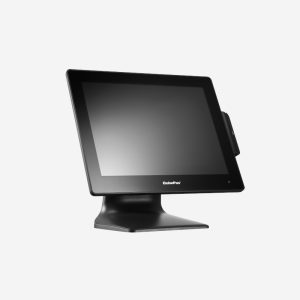

QubePos J1900 POS Terminal

QubePos® J1900 POS terminal which reinterprets the traditional forms of mechanical looking in a modern and contemporary style. Its unrivaled innovative design enables customers to enjoy space efficiency and usability at the same time. It features modern and contemporary styling, powerful performance, superior touch display, multiple I/O interfaces and flexible installation. Simply built for today’s retail and hospitality businesses.

Low-Power High-Performance Intel® Celeron® J1900 Quad-Core Processor, Fanless
Sleek and Compact Body with Small Footprint
15” Bezel-Free True-Flat Display PCAP Touch
LED Backlight Delivering Bright and Crisp Images
Multiple I/O Interfaces for Peripherals
Flexible Installation on a Counter or a Wall
Faster Installation and Serviceability

System		Processors: Intel® Celeron® j1900 (2M Cache, 2.0/2.42 GHz(Burst ), 4 Cores), Fanless
		Chipset: Intel® Bay Trail
		Memory: 4GB Standard , DDR3L 1600 MT/s, Socket 1x SODIMM
		Storage: SATA 2 (3Gb/s) 2.5 inch SSO 54GB, Support AHCI
		Operating Systems: Windows 7, Windows 8.1, Windows 10 loT Enterprise, POS Ready 7
		Audio: ReaItek ALC662-VD
Display		Type: 15″ TFT LCD. LED Backlight
		Resolution: 1024×768
		Brightness: 300 cd/ m2 (typ.)
		Touchscreen: Projective Capacitive Touch
Interface		Display: 1 x VGA (With Power Output)
		USB: 6 (Rear 2, Back 4, USB 2.0 x 6) 3 (Reserved for MSR, SCR, i-Button/Touch Controller/Camera). Rj-45
		Serial: 6 (COM 1 with 5V/12V Power Output on 9 Pins, BIOS) (COM2~3 RJ-45 , Full Signal) COM4 RJ-11, Only TX/RX, 12V Power Output, Reserved for CDP) (COM5 Reserved for Cash Drawer Port) (COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR)
		LAN: 1 x Gigabit Et hernet, Rj-45
		Audio: 1 x Line-out
		Power DC-IN: 1 x (4 Pin Connector)
Power		Power Supply: Adaptor 12V, SA
Physical & Environmental		Operating Temperature: 0 °C ~ 50 °C at 10% to 90% Humidity
		Storage Temperature: -20 °C ~ 80 °C at 10% to 90% Humidity
		Dimensions (W x H x D): 364 x 333 x 210 (mm), 14.3 x 13.1 x 8.2 (in)
		Packing Dimensions (W x H x D): 500 x 470 x 300 (mm), 19.6 x 18.5 x 11.8 (in)
		Net Weight: 5,300g, 11.6Ibs
		Packing Weight: 8,000g, 17.5Ibs
		Certification: CE, FCC, KC, CB, CCC
		Color: Matte Dark Grey
Options & Peripherals		2nd Displays: 9 7″, 121″,15″ LCD Display, 1024 x 768, Opt ional Touchscreen
		Customer Display: VFD, 20 Columns x 2 Lines
		I/O Expansion: 1 x COMS (Rj-45 8 Pins) (Factory Opt ion) 1 x Cash Drawer Port (Factory Option)
		Storage: 2.5 inch SSD 128GB, HOD 500GB, 1TB
		Magnetic Stripe Reader: Comply with ISO 7811, Support 1& 2 & 3 Track
		Smart Card Reader: EMV Level 1, 2
		Dallas: Dallas i-button Reader
		Fingerprint: Yes
		Camera: SM USB Interface (Internal) (Factory Optio n)
		Wall Mount Kit: VESA-Compatible, 75 x 75 (mm), 100 x 100 (mm)
		Serial Conversion Cable: RJ-45 to D-sub 9
		Speaker: 2 x 0.8W (Stereo) (Factory Option)
