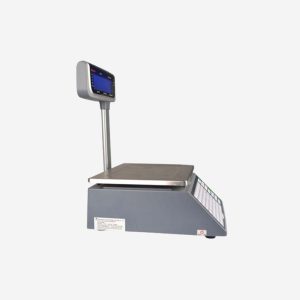

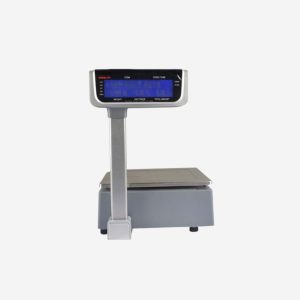

RLS1100C Label Print Scale

RLS1000C/RLS1100C Label Print Scale is a double monitor, support display brand logo, convenient for promote. Double motor design(printing model), high effect, stabilization. Nice appearance, drawer type printing model design, easy for paper loading operation.

Support search PLU No. and product content by code
Multiple barcode optional eg: 8bit, 13bit and 18bit
Support different size receipt paper and label paper
Display type: double screen dot matrix display
With drawable printer, convenient operation

Item		RLS1000C (RLS1100C)

Max Capacity		15kg (30kg)

Verification Scale Interval		2/5g (5/10g)

Minimun Capacity		40g (100g)
Display		Two Line LCD 256*32 dot matrix display
		Weight digit :5 digit;
		Unit price digit :8digit;
		Total price digit:8digit.

Keyboard		Type : Mylar Button
Keyboard		Number :140 buttons(28 function keys ,112*2 hot keys )

PLU Programmable Data		LFCode, item name , item no., unit price, charge unit, fresh days, tare weight, barcode, department,
		packing weight, packing type (normal, fixed weight, fixed price, fixed weight and fixed price),
		info one, info two, label format, discount, hotkey.

Data Storage		Store 10000PLU,can set at most 224 hotkeys
Printing Speed		90mm/s
Interface		SE, WSE
Power Supply		AC100~240V, 50/60Hz
Dimension		453mm×372mm×507mm
Label Paper Size		Width:30~60mm
		Maximum outer diameter:100mm,
		Maximum inner Diameter :28mm

Paper Out Method		Tear or Strip
Working Environment		Temperature: 0~40
Working Environment		Humidity: 5-85%

Storage Environment		Temperature: -10~60
Storage Environment		Humidity: 10-90% (paper exclused)

Weight		8.48kg

CPU		LPC1778FBD208

Memory		512KB

Executive Standard		GB/T 7722-2020, OIML R 76-1(2006) and EN 45501:2015

SDRAM		16MByte(nadflash)
