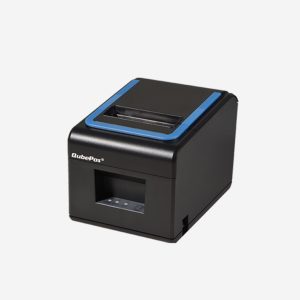

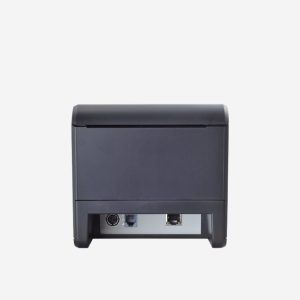

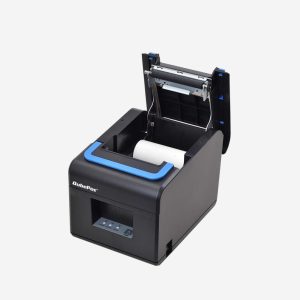

V320M Thermal Printer

The QubePos V320M is a low-cost thermal receipt printer that offers industry-leading speed, reliability and longevity. The V320M has an Ethernet connection that allows quick and easy connections to the network. It also includes a number of high-quality utilities that will enhance retail and hospitality in POS applications.

  • Auto Cutter: 1.5 Million Cuts
  • Printing Speed: 260mm/s
  • ESC/POS Compatible (Set the DIP switch to choose characters and fonts)
  • Mechanism Life: 100km
  • Easy for Paper Installation, Easy Maintenance, and Excellent Structure
SKU: 201003-1 Category: Tags: ,
Printing Printing method: Direct Thermal
Paper width: 79.5 ± 0.5mm
Print width:72mm
Column capacity: 576 dots/line (adjustable by command)
Printing speed: 200mm/s
Interface: USB+Serial / USB+LAN /USB+Bluetooth
Printing paper: 79.5±0.5mm
Line spacing: 3.75mm (Adjustable by commands)
Column number: 80mm paper: Font A – 42 columns or 48 columns/Font B – 56 columns or 64 columns/Chinese,traditional Chinese – 21 columns or 24 columns
Character size: ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese,traditional Chinese:3.0×3.0mm(24×24 dots)
Cutter Auto cutter: Partial
Barcode Character Extension character sheet: PC347 (Standard Europe), Katakana, PC850 (Multilingual), PC86 (Portuguese), PC863 (Canadian-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic#2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251)
Barcode types: UPC-A/UPC E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
2D barcode: QR code, PDF417
Buffer Input buffer: 128k bytes
NV Flash: 256k bytes
Power Power adaptor: Input:AC 110V/220V, 50~60Hz
Power source: Output:DC 24V/2.5A
Cash drawer output: DC 24V/1A
Reliability Cutter life: 1.5 million cuts
Printer head life: 100KM
Physical characteristics Weight: 1.05 KG
Dimensions: 190×140×136mm ( D×W×H)
Environmental Requirements Work environment: Temperature (0~45)  humidity(10~80%)
Storage environment: Temperature(-10~60℃) humidity(10~80%)
Software Emulation: ESC/POS
Driver: Windows/JPOS/ OPOS/Linux/Android/Mac
Utility: Windows & Linux test Utility
SDK: iOS/ Android/Windows
Weight 1100 g
Dimensions 190 × 140 × 136 mm
