Printing | Printing method: Direct Thermal & Thermal Transfer | |
| Printing speed: Max. 6 ips | ||
| Print Resolution: 203 dpi (8 dots/mm) | ||
| Print Length: Max. 100”(2540 mm) | ||
| Print Width: Max. 4.13”(105 mm) | ||
| Character Size: Font A 12 x 24 dots, Font B 9 x 17 dots | ||
| Memory: 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB) | ||
| CPU type: 32 bit RISC microprocessor | ||
Consumables Specifications | Sensors: Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable) | |
| Media Type: Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper | ||
| Media: Max. width:4.48”(114mm). Min. width: 1” (25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) | ||
| 8.26”(210mm)OD on a 3”(76mm) ID core. 7”(177.8mm) OD on a 1.5”(38mm) ID core | ||
| Ribbon: Max. width:4.4”(112mm). Min. width: 1” (25.4 mm). Length:max 450m Wax, Max OD 3.2” (81.3mm). | ||
| Core size ID 1”(25.4mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) | ||
Font & Symbologies | Fonts: Internal character sets standard. 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm).Internal fonts are expandable up to 24×24 4 direction 0 ~ 270 rotation. Soft fonts are downloadable. Ability to print any Windows True Type font easily. Support scalable font | |
| 1D Barcodes: UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked | ||
| 2D Barcodes: QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode | ||
| Graphics: PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI | ||
| Emulation: PPLA, PPLB, PPLZ | ||

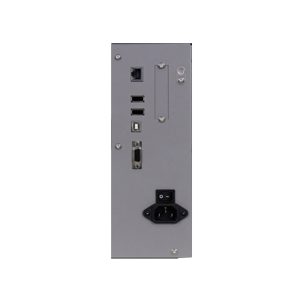

Interface Characteristics and Integration | Operation Interface: LED indicator x 3, Button x 3 | |
| Communication Interface: USB device, RS-232 | ||
| Real Time Clock (RTC): N/A | ||
| Drivers: Windows Driver for Windows XP(iX4-250 only)/Vista/Win7/Win8/Win10, LINUX Driver, macOS Driver, Raspberry Pi Driver | ||
| Database Link: Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) | ||
| Software: BarTender, Printer Tool | ||
Operating & Environment Characteristics | Power Source: Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz | |
| Operation Environment: Operation Temperature: 40°F~104°F (4°C~40°C), 0% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C) | ||
| Agency Listing: CE, CB, cULus, FCC, ICES, Energy Star, RoHS, BSMI |
