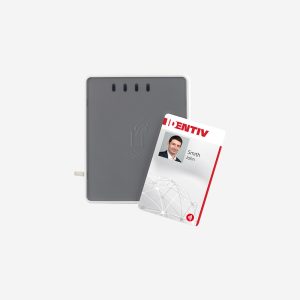

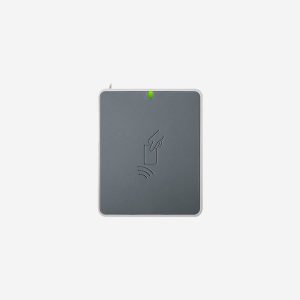

Cloud 3700F Contactless Smart Card Reader

3700 F is the ideal combination of contactless and near field communication (NFC) technologies. This PC-linked reader works in end-user environments where virtually all kinds of contactless credentials are used, even in mixed populations. With its all-in-one concept, 3700 F enables a smooth transition from well-established traditional technologies into emerging NFC applications, supporting new business. It represents the perfect mix between modern, stylish design and the same ergonomic operation of any credential form factor, like ID-1
cards, tokens, or NFC-enabled smart phones.

SKU: 209009 Category: Peripherals Tag: Retail

Support		Supported Tag Chips: MIFARE Classic® family, MIFARE Ultralight family, MIFARE Plus family, MIFARE DESFire family, FeliCa™, Calypso, CD21, NFC Forum Tag Types 1/2/3/4 Data Transfer Rate: 106/212/424/848 kbps, depending on card IC Antenna: Integrated

Driver and Software		PC/SC Driver: PC/SC Specification Ver. 2.01.14 for: Windows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, WindowsXP, MacOS 10.9.x – 12.2.x, Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit), Android 4.0 and higher Software: PC/SC API

Operating Conditions		Power Supply: USB Bus-powered Power Consumption: 50mA, excluding card Dimensions: 91x75x12 mm 94 x 77 x 69 mm (with stand base) Weight: 44 g ± 5% (0.097 lb ± 5%) / 84 g ± 5% / 104 g ± 5% (with stand base) Operating Temperature Range: 0° to 50° C (32° to 122° F) Storage Temperature Range: -25° to 85° C (-13° to 185° F) Operating Humidity: Range Up to 95% RH non-condensing Durability: Sliding contact 100,000 card insertions MTBF: ~10M hours Connector: 1.5m USB cable with USB type A connector Status Indicator: Bi-Color LED Firmware: SmartOS™ Firmware In-Field Upgradeable: Yes

Certifications / Compliance		Systems/Standards: USB 2.0 Full Speed, USB-CCID, Microsoft WHQL Regulatory/Environmental: CE, FCC, UL94, UL60950, RoHS2, REACH, WEEE

Ordering Information		Product Part Number: 905502-1 (Identiv Logo) 905502-4 (w/o Logo) 905525 (optional stand kit)
