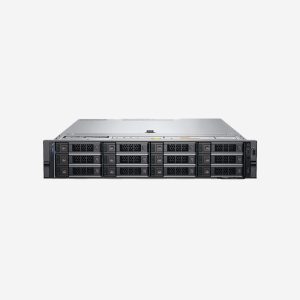

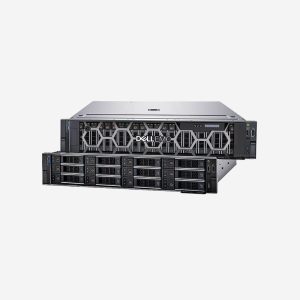

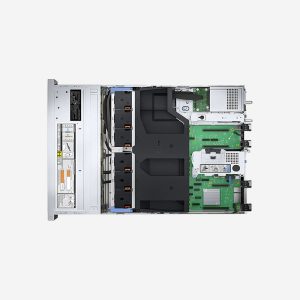

DELL EMC POWEREDGE R750XS

The Dell EMC PowerEdge R750xs, with 3rd generation Intel® Xeon® Scalable processors, is purposefully designed with distinctive, customer-defined requirements to deliver enterprise performance for scale-out environments.

Innovate at scale with challenging and emerging workloads
Increase efficiency and accelerate operations with autonomous collaboration
Built-in proactive resilience through a complete portfolio of solutions

SKU: 4309Y-8-16G-600-355 Category: Corporate Hardware Tag: Retail

Processor	Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
Memory	16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s ,Supports registered ECC DDR4 DIMMs only
Storage controllers	• Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150 • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB • External PERC (RAID): PERC H840, HBA355e
Drive Bays	Front bays:
	• 0 drive bay
	• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
	• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
	• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
	• Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB
	• Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB
	Rear bays:
	• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB

Power Supplies	• 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
	• 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
	• 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
	• 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
	• 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)

Cooling options	Air cooling

Fans	• Standard fans/High performance Silver fans/High performance Gold fans

	• Up to six hot swap fans


Form Factor	2U rack server

Embedded Management	• iDRAC9
	• iDRAC Service Module
	• iDRAC Direct
	• Quick Sync 2 wireless module

Integrations and Connections	• BMC Truesight
	• Microsoft System Center
	• OpenManage Integrations
	• Red Hat Ansible Modules
	• VMware vCenter and vRealize Operations Manager

	• IBM Tivoli Netcool/OMNIbus
	• IBM Tivoli Network Manager IP Edition
	• Micro Focus Operations Manager
	• OpenManage Connections
	• Nagios Core
	• Nagios XI

Security	• Cryptographically signed firmware
	• Secure Boot
	• Secure Erase
	• Silicon Root of Trust
	• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
	• TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Operating System and Hypervisors	• Canonical Ubuntu Server LTS
	• Citrix Hypervisor
	• Microsoft Windows Server with Hyper-V
	• Red Hat Enterprise Linux
	• SUSE Linux Enterprise Server
	• VMware ESXi

PCIe	Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slots
	• 3 x16 Gen4 low profile
	• 2 x16 Gen4 low profile (optional)
	• 1 x8 Gen3 (x4 lane) low profile

Network Options	1 x OCP 3.0

Embedded NIC	2 x 1 GbE LOM

Mobility	OpenManage Mobile

OpenManage Software	• OpenManage Enterprise
	• OpenManage Power Manager plugin
	• OpenManage SupportAssist plugin
	• OpenManage Update Manager plugin
