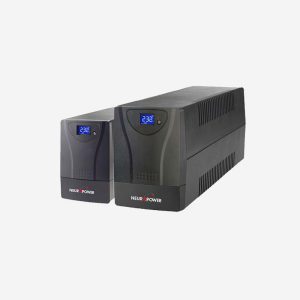

Neuropower Compact Touch Series 1500VA UPS (1K5T)

Designed with simple and accessible controls to improve functionality and daily operations, Neuropower’s Compact Touch Series is a family of highly reliable, efficient and manageable line interactive UPS.

  • Designed using digital microprocessors

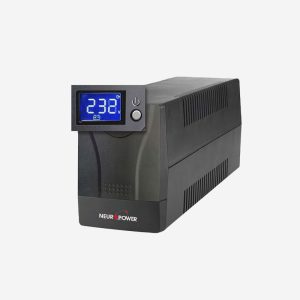

  • Touch screen LCD display
  • Audible alarm feature
  • 4x Grounded British sockets with safety shutter
  • Auto restart function available
  • Built in smart charger reduces UPS’s charging time of the by 50%
  • Resettable circuit breaker protection
  • Cold start and off charging mode
SKU: 210023 Category: Tag:
Input
 Voltage (VAC): 220 / 230 / 240
 Range: 162 – 290
 Frequency Range (Hz): 45 – 65 (Auto Sensing)

Output
 Nominal (VAC):220 / 230 / 240
 Batt Mode Regulation (VAC): ± 10%
 Frequency (Hz): 50 or 60 ± 1
 Waveform (Battery): Simulated Sinewave
 Transfer Time: Typically 2 – 6 ms
 Outlets: 4 x British Sockets
 Current (A): 6.5

Battery
 Recharge Time: 4 to 6 hours to 90% after complete discharge
 Backup Time*: Half Load: 15 minutes / Full Load : 5 minutes
 Rating (QTY): 12V 9AH (2)
 Type: Sealed Lead Acid Maintenance Free

Protection
 EMI Filter: Yes
 Surge / Spike: Yes
 Overload Short Circuit: Yes. Current detector and limited by firmware
 Modem / Network: Yes
 Input Main: User Friendly Resettable Breaker


Audible Alarm Beeping: For Battery Mode, Battery Load, Overload and Faults

Display LCD Touch Screen: Input Voltage, Output Voltage, Battery Capacity, Load Level and UPS Status

Power Management
 Interface Port: USB
 Software: Support Windows ® family (NT/ XP/ Vista/ 7/ 8/10), Linux, Unix, Sun Solaris & MAC

Physical
 Dimension, W x D x H (mm) :130 x 320 x 182
 Weight (kg) :10.4

Operating Environment
 Temperature (°C): 0 to 40
 Humidity: 0-90% Without Condensation
 Noise Level: @ 1 Meter (dB) < 40

Warranty UPS Warranty: 3 Years Full Warranty Include Parts & Labour & 2 Years Warranty for Battery



Weight 10400 g
Dimensions 130 × 320 × 182 mm
